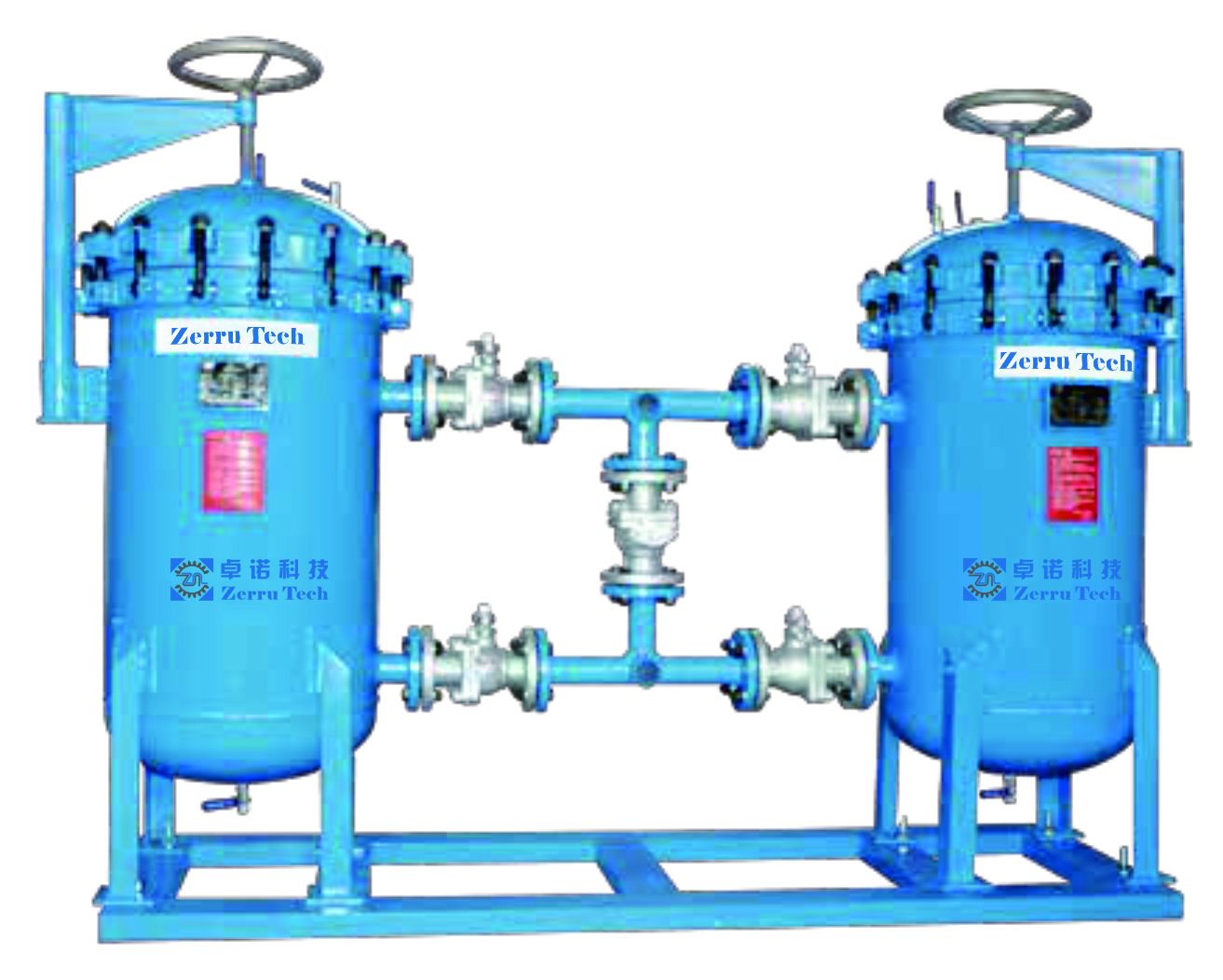

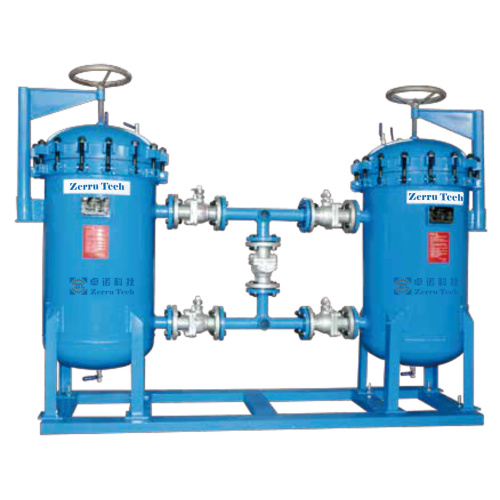

Double Bag Filter housings

Double bag Filter housings are made of stainless steel and are equipped with a manual switch for parallel or single operation. This allows for a Filter Bag exchange without process interruption, ensuring constant operation. Depending on the flow rate and medium, different types of connections can be delivered, e.g. flange, screwed pipe connection , or pipe thread. The versions with a central switch-over handle are equipped with 3-way-ball-valves. The versions with butterfly-valves are equipped with a central T-piece for in- and outlet.

Three different sizes with filter areas ranging from 2 x 0,1 m2, 2 x 0,25 m2 and 2 x 0,5 m2 are available. Special accessories such as discharge-ball valves and vent valves, volume reducers, and manometers can also be supplied. Additional optional instruments available for monitoring are different pressure gauges and pressure detectors.

Tecchnical Data

Material	Housing: stainless steel 304/316L/904L Basket: stainless steel 304/316L/904L O-Ring: Viton (Viton-FEP-encapsulated, EPDM, Silicone, VITON,NBR)
Inlet / Outlet	Size, type and position according to customer specification
Vent	2 x G¼“ internal thread
Drain	R 1“ external thread ( except for version „SU“)
Filter bag	See table
Installations	Stainless steel 1.4571
Differential pressure	max. 3.5 bar
Pressure	max. 10bar
Temperature	max. 95 °C (sterilisation 150 °C) With PP-Filter bags max. 70 °C, relating to bag material
Flow Rate	The maximum flow rate correlates to the nominal diameter of the housing connection and the characteristic curve of the flow rate of the chosen filter bag.

Features and benefits

Double-bag filter housing with a manual switch between the two
Parallel operation or individual operation possible
Bag filter housing made of stainless steel with a hinged cover and swinging bolts
Three assembly sizes with 0,1 m2, 0,25 m2, 0,5 m2 filter area
Location, type and size of in- and outlet according to customer specification
Pressure basket made of stainless steel mesh
Spring-assisted press-on device made of stainless steel
Can be delivered with a tripod or volume reducer
