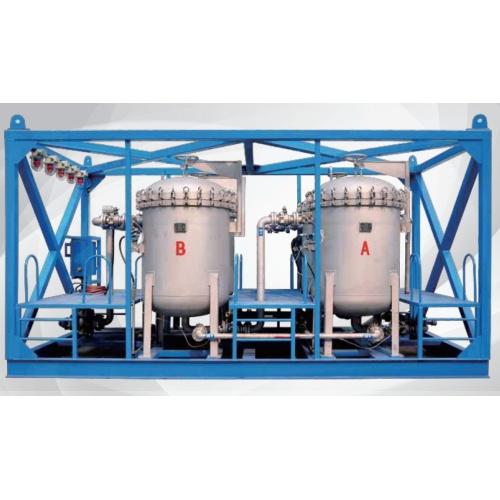

The ZD-Y multi-bag Filter, including the carbon steel bag filter and the carbon steel multi-bag filter housing, is suitable for flow rates ranging from 60 to 5000 m³/h. For smaller filters, equipped with a handwheel and standard bearing arm, they are easy to open and operate; for filters with more than 12 bags, a cylinder or hydraulic device can be selected for assistance, allowing a single person to easily open and close the filter. Auxiliary devices such as an interlocking pressure relief valve and positioning pins ensure the safety and reliability of equipment operation while preventing dangerous misoperations. A 316L bag filter is also available for applications requiring higher corrosion resistance.
| Housing Material | Carbon steel, stainless steel, duplex steel, titanium material, Hastelloy alloy, lined with PTFE, sprayed with PTFE |
|---|---|
| Gasket Material | Dingqing rubber |
| Polytetrafluoroethylene | |
| EPDM rubber | |
| Fluororubber | |
| wrapped fluororubber | |
| Number of Filter Bags | 1-24 (larger specifications require non-standard design) |
| Filter Bag Model | Single bag filters: 1#, 2#, 3#, 4# Multi bag filters: 1#, 2# |
| Maximum Operating Pressure | 1.0 MPa = 10 bar = 150 PSI |
| Design Temperature Range | Carbon steel: -6 to 250°C Stainless steel: -28 to 298°C |
| Non-contact Parts with Filter Media | Carbon steel filter: Carbon steel Stainless steel filter: Stainless steel |
| Import and Export Connections | NPT or flange |
| Surface Treatment | Carbon steel: exterior surface painted Stainless steel: sandblasting (standard), pickling, polishing |
| Filter Bag Sealing | Manual, no manual compression required (standard configuration) |
| Opening Method | Quick opening bolt |
