ZMP Series Pipeline Magnetic Separator

Protection: Secondary

Feed Type: Lean / Dilute Phase and gravity discharge

Material Type: NdFeB

Cleaning Type: Manual

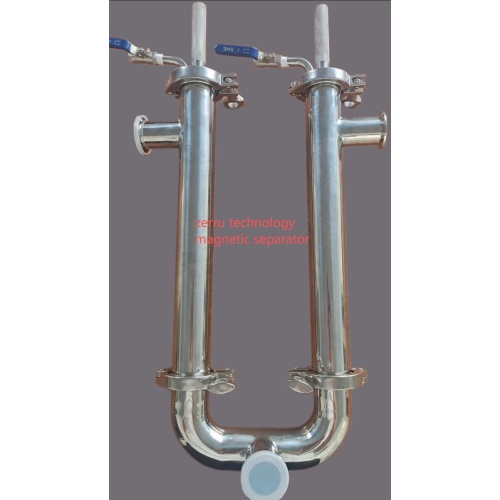

The ZMP high intensity magnetic separator, specifically the ZMP series magnetic separator for pipeline, has been designed to operate in lean / dilute conveying lines, and gravity pipes to provide protection against ferrous and paramagnetic contamination. This robust solution is ideal for applications where the removal of metal contaminants is critical to prevent damage to downstream equipment and ensure product quality.

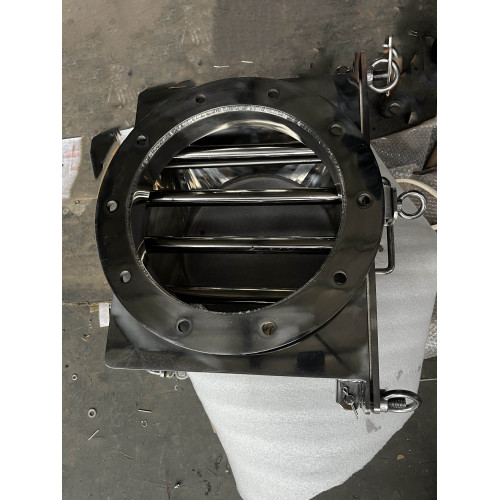

The Pipeline magnetic separator, which is part of the ZMP series, features the assembly of high-strength cassette tapes with double row magnets on a single unit. This design allows for a more effective capture of ferrous particles, providing a high level of magnetic attraction that is essential in industrial settings. It is securely inserted into its casing fixture to ensure uniformity and to generate pressure around the O-ring, which helps maintain a sealed environment and prevents the leakage of fluids or particles.

The ZMP Magnetic Separator can be incorporated into lean/dilute phase conveying lines and gravity pipes in a vertical orientation. This makes the Pipeline Filter Magnets an excellent choice for installations where space is limited or where a vertical configuration is more practical. A common installation location is at tanker discharge to inspect incoming raw materials, ensuring that any ferrous contaminants are removed before the materials enter the production process.

In summary, the ZMP series magnetic separator for pipeline, with its Pipeline magnetic separator and Pipeline Filter Magnets, offers a reliable and efficient solution for magnetic separation in various industrial applications. Its high-strength magnetic capabilities and secure design make it an essential component in protecting processes from the harmful effects of ferrous and paramagnetic contamination.

Benefits

• Reduces 'spark' risk
• Certified EHEDG Type EL II
• Removes sub-micron sized contaminants

Performance

Magnetic Performance: 7,000, 9,000, 10,000 (Easy clean)

Performance Reading: On product contact surface

Magnet Grade: N35 (7k gauss), N45 (9K gauss) & N52 (10k gauss)

Temperature: Standard 80°C

Pressure: + / - 1 Bar

Suitability

Suitable Products: Dry powders and granulates

Suitable Location: Vertical conveying pipes

Materials

Magnetic Material: Rare Earth Neodymium Iron Boron - (NdFeB)

Housing: *316 grade stainless steel

Tubing: *316 grade stainless steel

Other Parts: *316 grade stainless steel

Sealing: Silicon rubber – Red, FDA approved

Surface Finish: Polished internally Ra 0.6µm, Brushed externally to Ra 0.8µm

*316L Available if required

Cleaning

The EHEDG EL Class II separator uses our 'easy clean' system. To clean, simply release the DIN 11853-3 clamps, remove the contaminated cartridge away from the housing and then remove the magnetic cores from the tube assembly. All attracted contamination will be released allowing for inspection or further analysis.

Options

• Higher temperature versions available
• Seal types - FKM, EPDM, Nitrile
• Plain Spout
