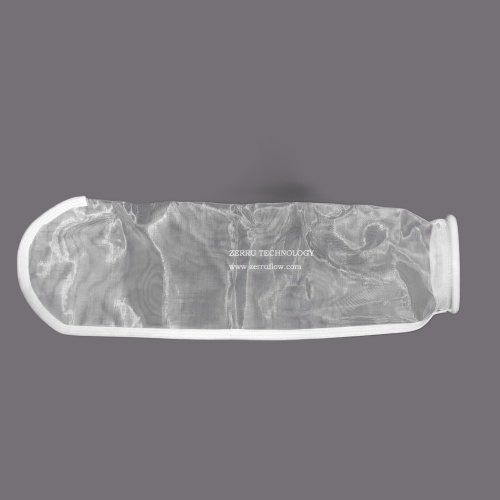

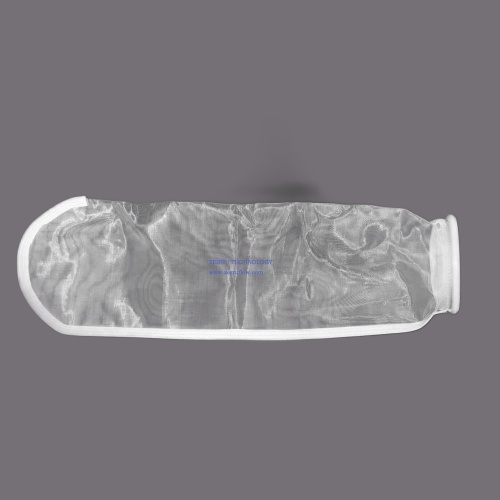

High Capacity Foldable Filter Bag Title

Zhuo Nuo Folding Filter Bag

Renowned for its deep three-dimensional filtering material, the Zhuo Nuo folding Filter bag offers a variety of high-capacity options, including the Polypropylene High Capacity Foldable Filter Bag, High Capacity Polyester Foldable Filter Bag, and High Capacity Nylon Foldable Filter Bag. These bags are crafted from 100% pure fibers, forming a three-dimensional, highly fluffy structure through a needle-punching process, which creates a depth-winding filtering layer.

The characteristic loose fibrous structure of these filter bags significantly enhances their impurity-carrying capacity at a high rate, effectively removing solid and soft particles. Larger particle impurities are intercepted on the surface of the fibers, while finer particles are captured in the deep layers of the filter material, ensuring high filtration efficiency.

The application of instant sintering technology or calendering treatment in the manufacturing process of these bags, such as those found in the Polypropylene High Capacity Foldable Filter Bag and others, prevents fiber loss due to high-speed liquid impact during filtration. This ensures no fiber detachment, which could otherwise contaminate the filtrate, making these folding filter bags a reliable choice for various filtration needs.

Filter Bag Material

• Material: Polypropylene, Polyester, Nylon, PTFE
• Filter Bag Ring Mouth: Polypropylene Ring, Polyester Ring, Steel Ring
• Filtering Accuracy Levels (μm): 0.5, 1, 5, 10, 25, 50, 75, 100, 200

Zhuo Nuo Filter Bag Performance Table

Zhuo Nuo Bag Filter Model

1. Filter Model Abbreviation: Abbreviation of filter model
2. Equipment Shell Material and Number of Filter Bags: S-Stainless Steel, C-Carbon Steel, P-Duplex Steel, N-Nickel Alloy, H-Hastelloy Alloy
3. Flange Specifications: PL-Flat Welding Plate, SO-Short Neck Flat Welding, WN-Neck Flat Welding
4. Flange Sealing Surface Form: RF-Raised Face, FF-Full Face, RJ-Ring Joint Face, MFM-Male and Female Face, TG-Tongue and Groove Face
5. Flange Standard: HG-Chemical Industry Ministry Standard, DIN-German Standard, JIS-Japanese Standard, GB-National Standard, ANSI-American Standard
6. Filter Pipe Flange Pressure Rating: Example: P06=PN6
7. Filter Filtration Accuracy: Example: 5=5 μm
8. Internal and External Surface Treatment of Filters: A-Blasting, B-Polishing, C-Electrolysis, D-Painting, E-Epoxy Spraying, F-Phosphating, J-De-greasing
9. Filter Flow Direction Selection: Example: T8=TYPE8
