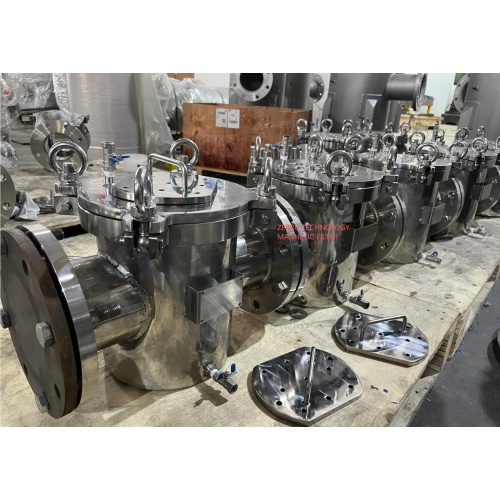

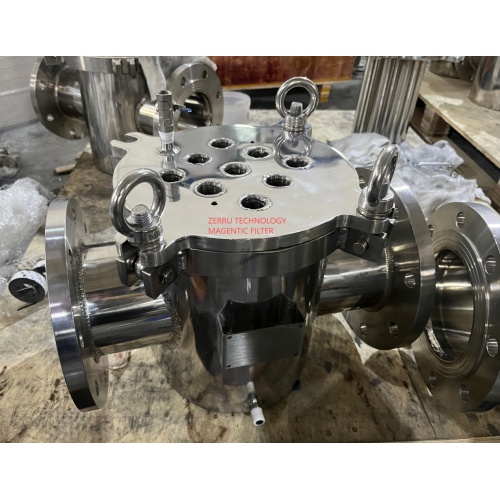

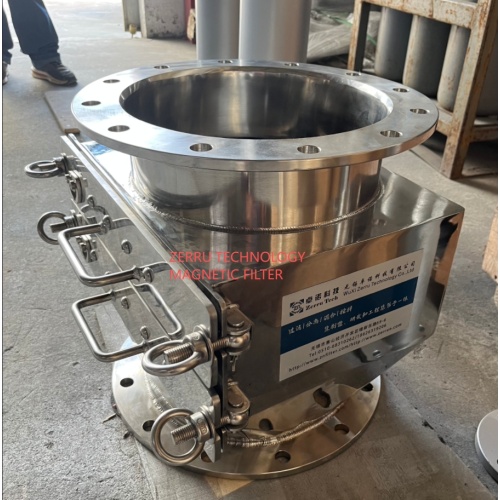

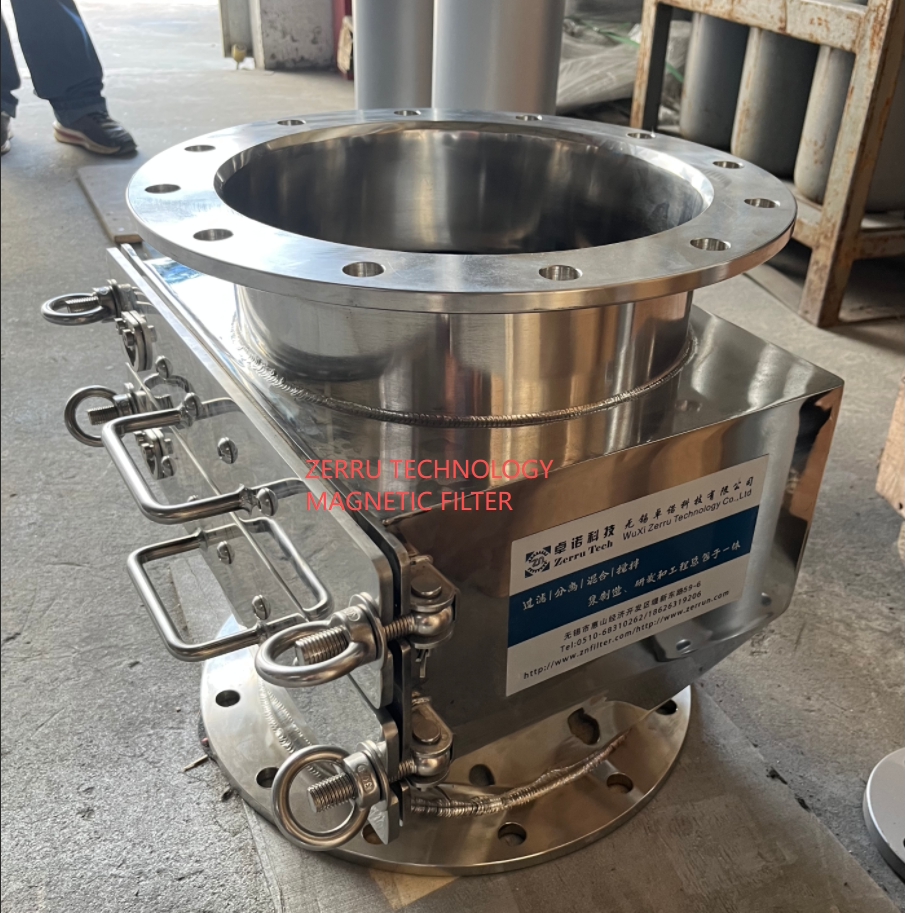

Static Cleanflow Manual Magnetic Filtering for Flour

Application: powders & granulates in free-fall pipes

Suitable for magnetic filtering of sporadically present, fine ferrous contaminants from granulates - such as plastics - and dry, free-flowing powders - like flour and sugar - in free-fall transport pipes. NOT suitable for poorly flowing sticky / fatty powders that cause blockages. Rotating Cleanflows are a better solution for those applications.

Construction & materials data

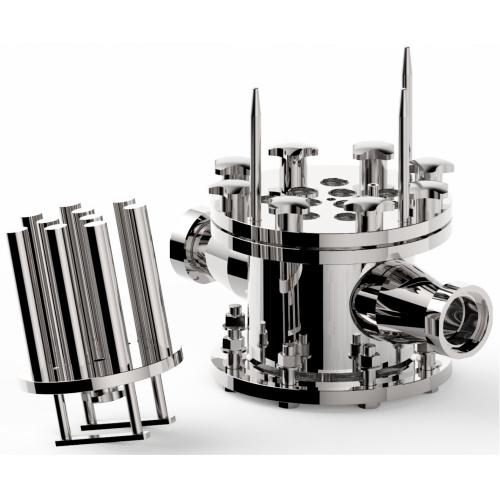

• 2 Magnetic grids, placed staggered one above the other.

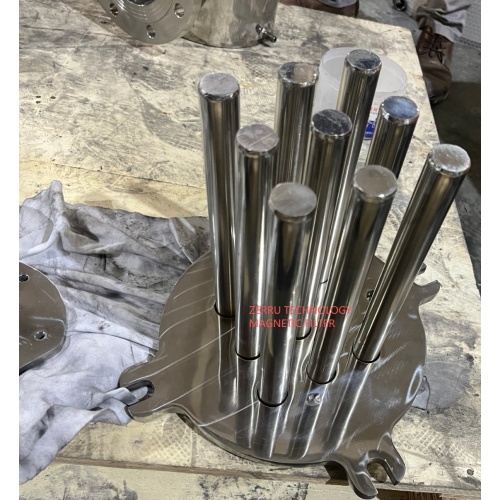

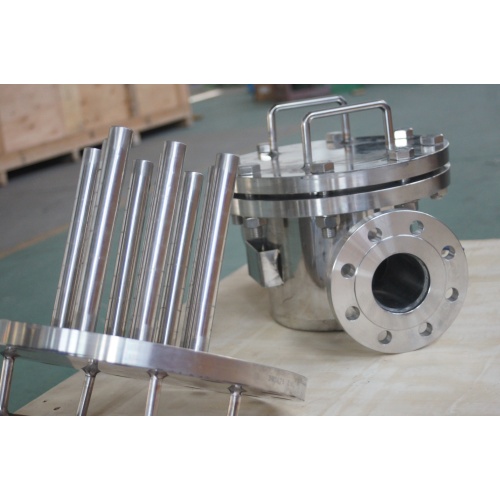

• Extractor bars  Ø22/Ø25/Ø28/Ø30mm for 'quick cleaning'.
• Magnet quality neodymium N-42, 8,000 gauss on tube Ø25.
• Materials - in contact with product: AISI316(L).

Available versions, options & accessories

Basic type:

• Industrial execution; grit blasted
• Default with round or square in-/outlet

Food / pharma type:

• Hygienic execution; polished
• Default only with square inlet

Options:

• • High temperatures versions - to 140°C - not available in combination with ATEX.
  • Steute door safety switch - for detecting if the separator is closed.
  • White door seal instead of red.
  • Inlet/outlet adapter pieces from square to round.
