Housing Cast Micro-Static Mixer

Cast Micro-Static Mixer

Manufacturer: Wuxi ZERRU Technology Co., Ltd.

Product Overview

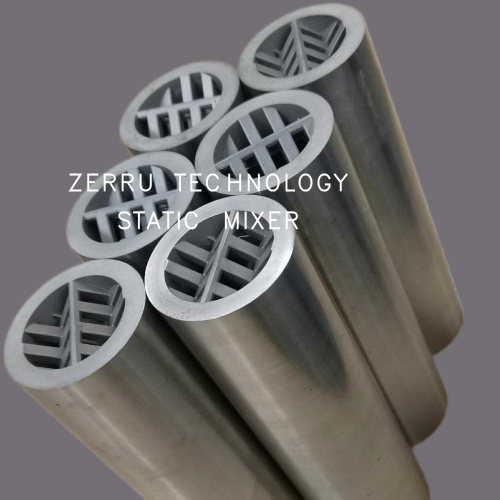

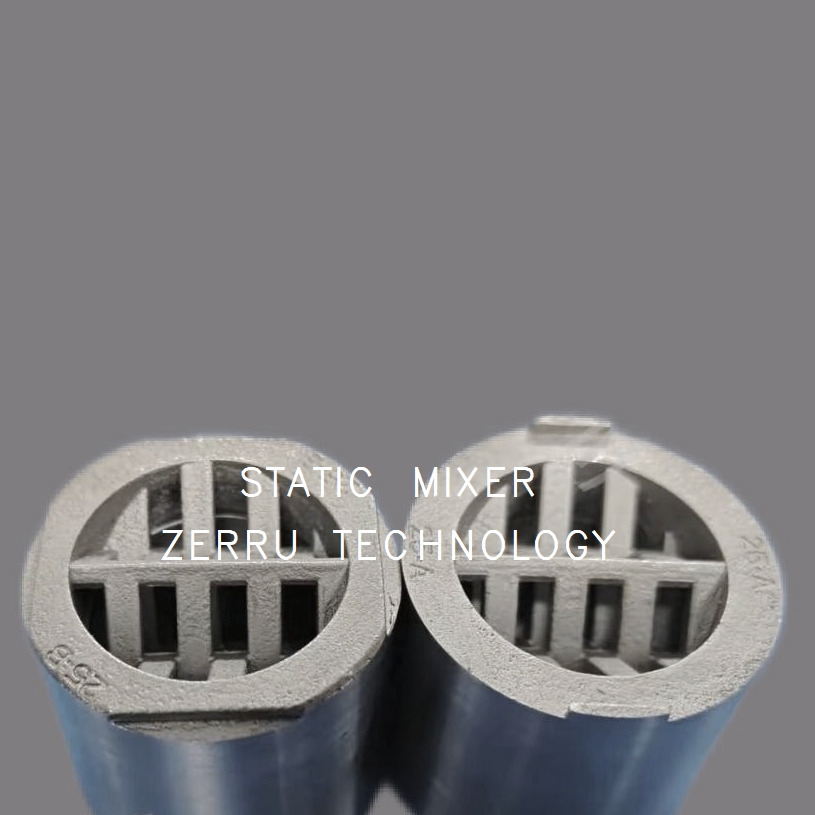

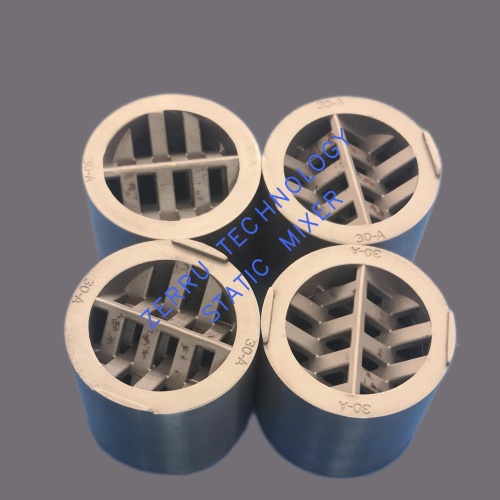

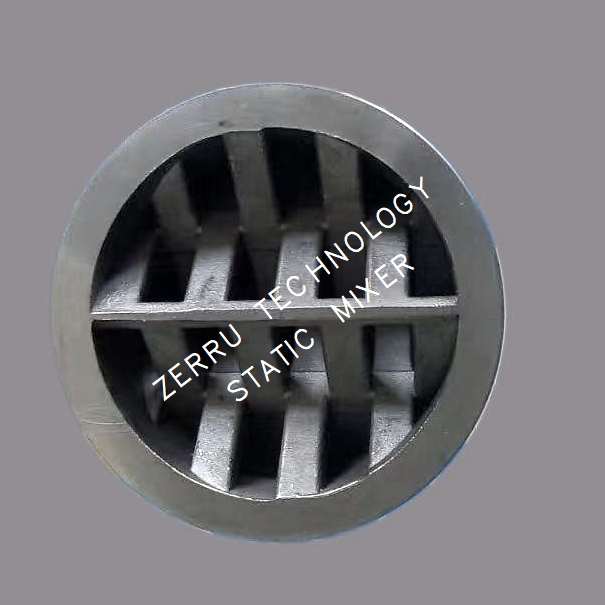

The Cast Micro-Static Mixer produced by Wuxi ZERRU Technology Co., Ltd. is specifically designed for mixing and dispersing viscous materials in injection molding and fluid processing applications. Manufactured using advanced precision casting technology, the mixer features an integrated one-piece structure with no moving parts, achieving highly efficient and uniform mixing within an extremely short installation length.

Working Principle

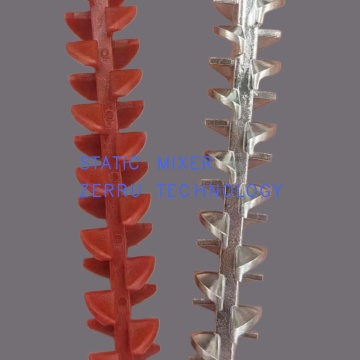

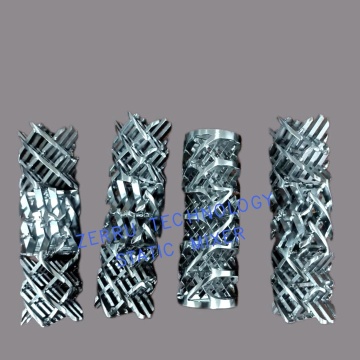

The static mixing elements are installed inside a pipe or nozzle housing. As viscous materials flow through the mixer, they are directed along the geometric structure of the specially designed mixing bars within the elements. This structure continuously divides, reorients, and recombines the flow, achieving uniform mixing across the entire cross-section. The entire process requires no external energy source, relying solely on the kinetic energy of the fluid itself.

Key Features & Benefits





Feature	Benefit
Precision casting, one-piece structure	No weld points, no dead zones; complete structural integrity prevents material stagnation and contamination
No moving parts	Virtually maintenance-free, reliable operation, long service life
Extremely short mixing length	Achieves highly uniform mixing within a short installation distance
Low pressure drop design	Maintains modest pressure loss while achieving high mixing efficiency, reducing energy consumption
Robust and durable	Monolithic cast structure makes it virtually indestructible, suitable for high-load applications
High-quality materials	Manufactured from premium steel, resistant to wear, corrosion, and high temperatures (up to 350°C)



Ordering Information





Item	Details
Product Name	Cast Micro-Static Mixer
Size Range	DN12 ~ DN200
Manufacturer	Wuxi ZERRU Technology Co., Ltd.

---
