Duplex ZQM-SV Static Mixer Design

A Static Mixer

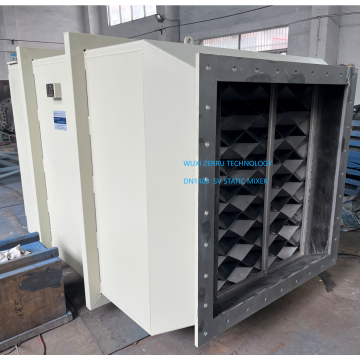

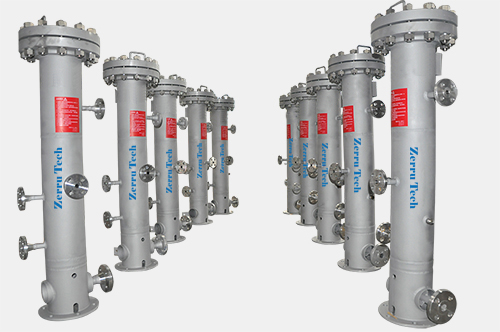

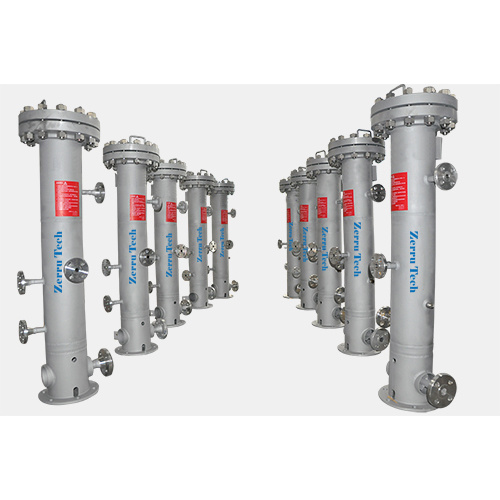

A static mixer, such as the Duplex ZQM-SV Static Mixer, is an efficient mixing device without moving parts. In addition to being widely used in the petroleum refining and chemical industries, it is also widely used in sectors such as medicine, food, mining, plastic extrusion, and environmental protection. The PTFE static mixer, for instance, is known for its resistance to chemicals and is often used in applications where material compatibility is crucial. Compared with traditional mixing equipment such as mixers, colloid mills, homogenizers, and Venturi tubes, it has the advantages of a simple process, compact structure, low energy consumption, low investment, high operational flexibility, no need for maintenance, and good mixing performance.

The Liquid AND solid static mixer is designed to handle not just liquids but also solid components, making it versatile for a variety of industrial processes. Any process involving the mixing, emulsification, neutralization, absorption, extraction, reaction, and enhanced heat transfer of liquid-liquid, liquid-gas, liquid-solid, and gas can be efficiently managed with this type of mixer, replacing traditional related equipment.

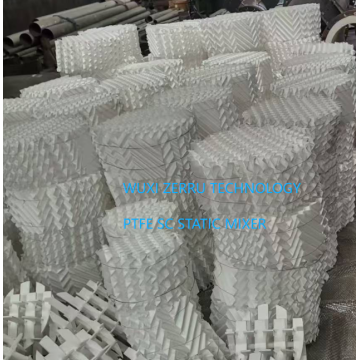

The Food static mixer is a specialized version of the static mixer, tailored to meet the stringent hygiene and safety standards of the food industry. It ensures that the mixing process is not only efficient but also safe for food products. A static mixer, whether a Duplex ZQM-SV Static Mixer or a PTFE static mixer, offers high operational flexibility and good mixing performance across various sectors, including the food industry where the Food static mixer plays a significant role. These mixers are particularly suitable for high viscosity media with small flow rates and impurities or viscosity ≤ 103 CP, making them ideal for a wide range of applications in the food and pharmaceutical industries, among others.

SV Elements

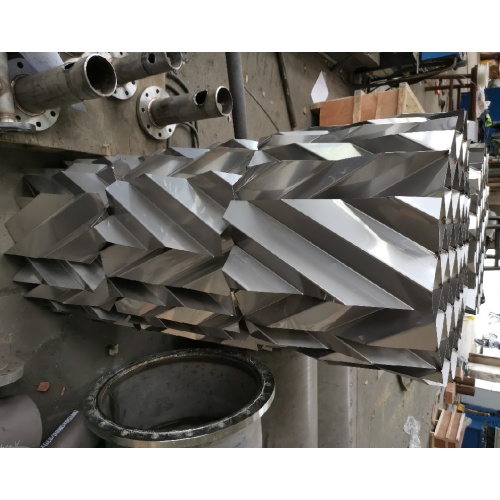

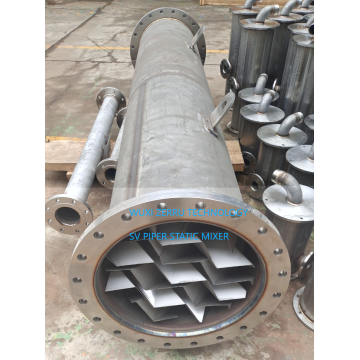

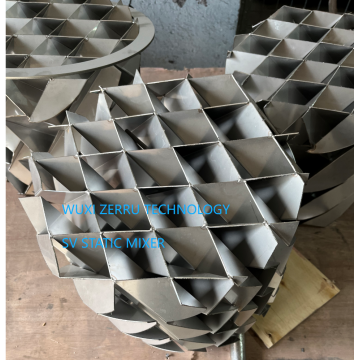

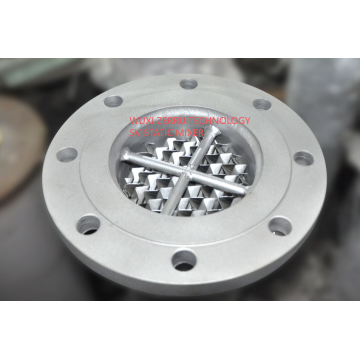

SV Elements is made up of uniformly waves like plates formed together assembly of the cylinder.

Technical Features:

• Liquid-liquid, gas-gas unevenness factor of σX ≤1～5%.
• It has a degree of dispersion 1~2um, suitable for liquid-liquid mixing, liquid gas mixture, smaller viscosity materials.

Typical Application:

• Gasoline and diesel oil blending, brine acid neutralization, gas mixture;
• Liquid - liquid, liquid - gas, gas - gas mixing, emulsifying, reaction, absorption, extraction, strengthening the reaction process of heat transfer.

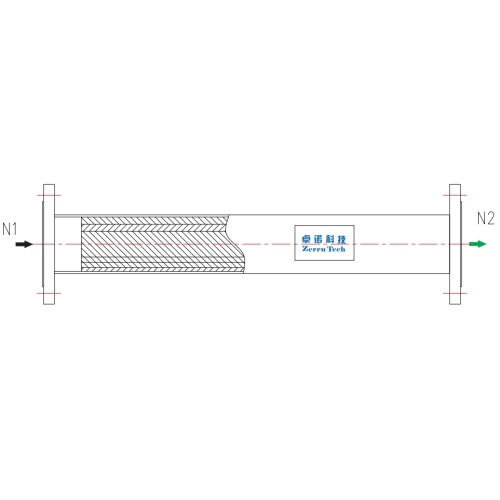

Installation Dimensions
