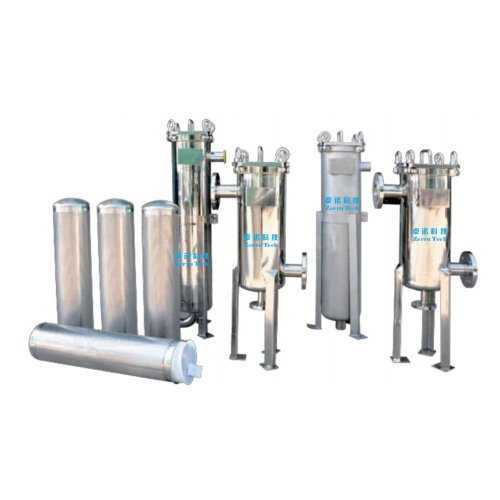

The side entry single bag Filter, also known as a Sideline bag filter, is the most commonly used filter equipment, and the standard Sideline bag filter is produced by Zhuo Nuo. All components are standard models, and the filter can be produced on a water line. These filters are available in various materials, including the Heavy duty filter housing and the PP.PVDF. PTFE Plastic bag filter, which cater to different industrial needs.
Using standard DN50 and DN80 flange interface connections, the Sideline filter housing is designed to accommodate a variety of Filter Bag configurations. Four standard sizes are suitable for filter bags: 1, 2, 3, and 4 filter bags, which can be either PP Bag Filters or PTFE Bag Filters, depending on the specific requirements of the filtration process. The Heavy duty filter housing is particularly useful for applications that demand robust construction and durability, ensuring the longevity and reliability of the filtration system.
In summary, the Sideline bag filter from Zhuo Nuo offers a versatile range of options, from standard models to Heavy duty filter housings, and from PP Bag Filters to PTFE Bag Filters, all designed to meet the diverse demands of industrial filtration processes.
| Filter cartridge material | Carbon steel, stainless steel, duplex steel, titanium material, Hastelloy alloy, lined with PTFE, sprayed with PTFE |
|---|---|
| Sealing ring material | Dingqing rubber, Polytetrafluoroethylene, EPDM rubber, Fluororubber, wrapped fluororubber |
| Number of filter bags | 1-24 (larger specifications require non-standard design) |
| Filter bag model | Single bag filters: 1#, 2#, 3#, 4# Multi bag filters: 1#, 2# |
| Maximum operating pressure | 1.0MPa = 10bar = 150PSI |
| Design temperature range | Carbon steel: -6~250°C Stainless steel: -28~298°C |
| Non contact parts with filter media | Carbon steel filter: Carbon steel Stainless steel filter: stainless steel |
| Import and export connections | NPT or flange |
| Surface treatment | Carbon steel: exterior surface painted Stainless steel: sandblasting (standard), pickling, polishing |
| Filter bag sealing | Manual, no manual compression required (standard configuration) |
| Opening method | Quick opening bolt |

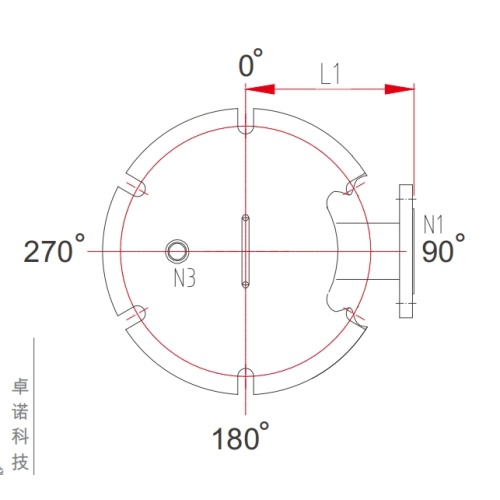

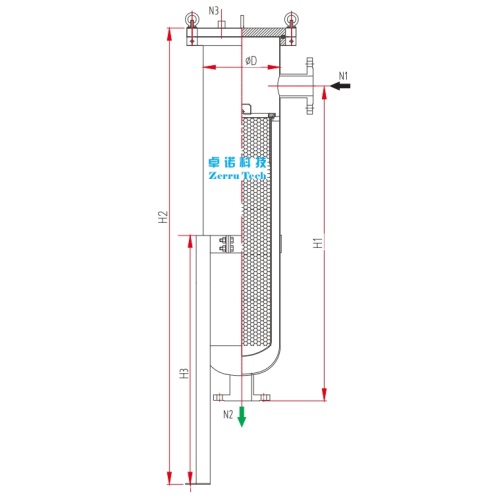

| Model | Filter Model | Flow rate M3/h | Body height mm | Total height mm | Filter diameter mm | Filter bag diameter mm | Inlet and outlet |
|---|---|---|---|---|---|---|---|
| ZD-S-21 | 1 | 20 | 500 | 720 | Φ219 | Φ170 | 1"~4" |
| ZD-S-22 | 2 | 40 | 700 | 1070 | Φ219 | Φ170 | 1"~4" |
| ZD-S-23 | 3 | 6 | 350 | 430 | Φ114 | Φ97 | 3/4"~2" |
| ZD-S-24 | 4 | 12 | 500 | 580 | Φ114 | Φ97 | 3/4"~2" |
