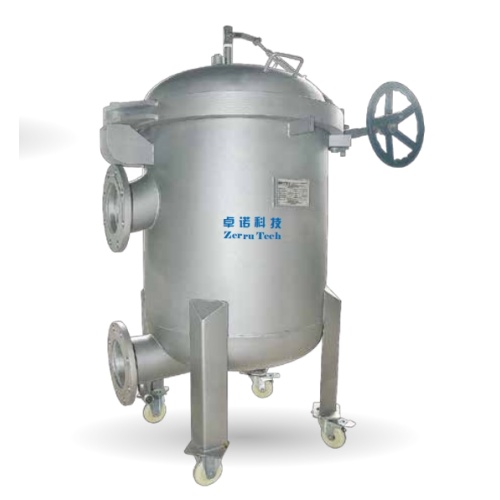

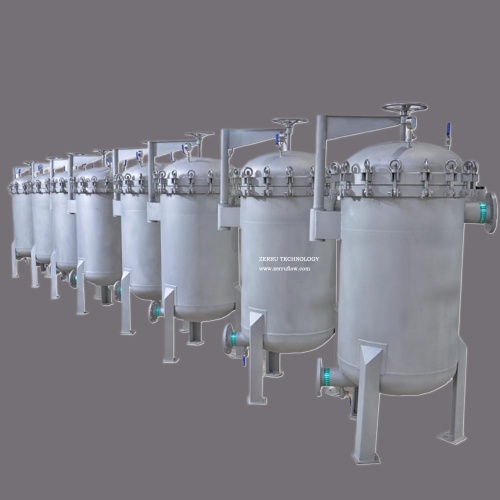

Quick Opening Multi-Bag Filter Housing

Easy-to-use and high-efficiency filter, suitable for high flow applications.

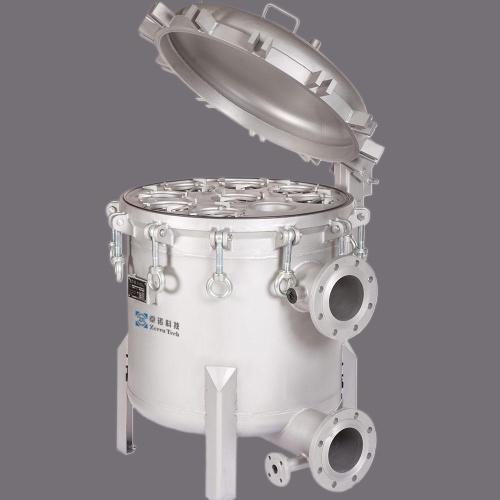

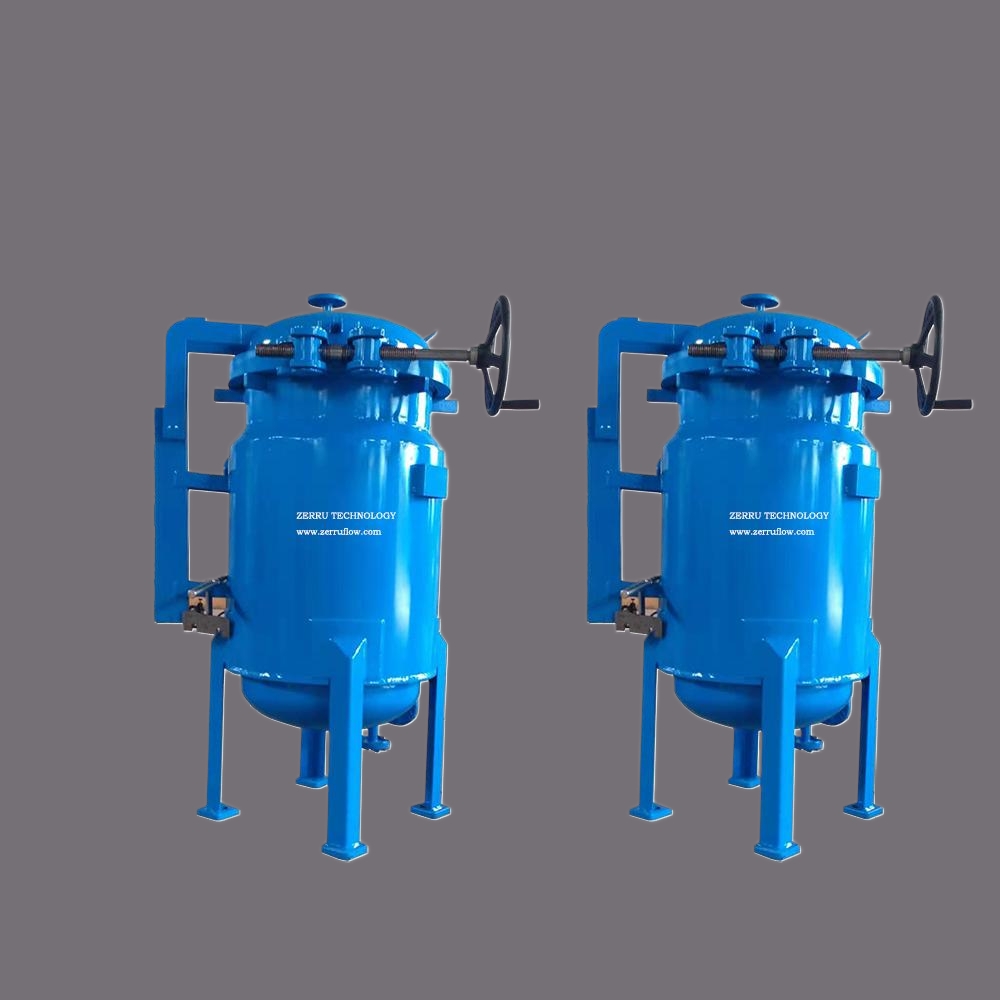

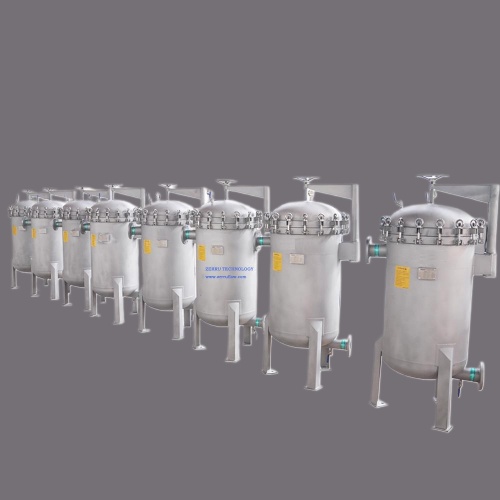

The Quick opening multi-bag filter housing is designed for efficient operation, featuring a rapid opening bag filter housing that simplifies maintenance. This quick opening bag filter allows for swift Filter Bag replacements, enhancing productivity and safety in filtration processes.

Features

• The fast opening system is the simplest, easy to use and safe operating system, reducing downtime to the shortest, promoting productivity and reducing operating costs;
• Unique 3-point hold down ensures a high-quality seal between each filter bag and housing body;
• A spring assisted lifting mechanism balances for quick and easy opening;
• Positive O-ring sealing offers easy and safe operation;
• Side inlet provides easy and full drainage, also a tangential outlet is equipped;
• Accommodate up to 24 individual filter bags (1# and 2# bag).

Typical Applications

• Automotive
• Electronics
• Copper foil
• Chemical Processing
• Pharmaceutical
• Pulp and Paper
• Oil and natural gas
• Metallurgy

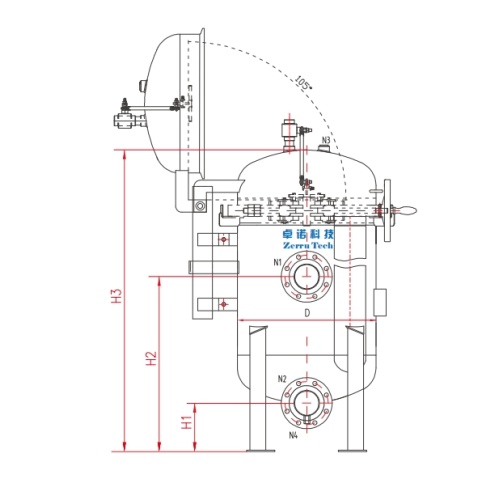

Technical Parameters

Filter Cartridge Material

• Carbon steel, stainless steel, duplex steel
• Titanium material, Hastelloy alloy
• Lined with PTFE and sprayed with PTFE

Sealing Ring Material

• Dingqing rubber
• Polytetrafluoroethylene
• EPDM rubber
• Fluororubber
• wrapped fluororubber

Number of Filter Bags

• 1-24 (larger specifications require non-standard design)

Filter Bag Model

• Single bag filters: 1 #, 2 #, 3 #, 4#
• Multi bag filters: 1 #, 2#

Maximum Operating Pressure

• 1.0MPa = 10bar = 150PSI

Design Temperature Range

• Carbon steel: -6~250 °C (The design temperature did not consider the filter bag)
• Stainless steel: -28~298 °C

Non Contact Parts with Filter Media

• Carbon steel filter: Carbon steel
• Stainless steel filter: stainless steel

Import and Export Connections

• NPT or flange

Surface Treatment

• Carbon steel: exterior surface painted
• Stainless steel: sandblasting (standard), pickling, polishing

Filter Bag Sealing

• Manual, no manual compression required (standard configuration)

Opening Method

• Quick open
