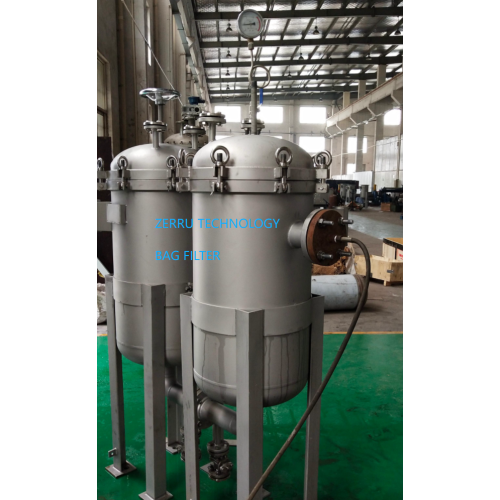

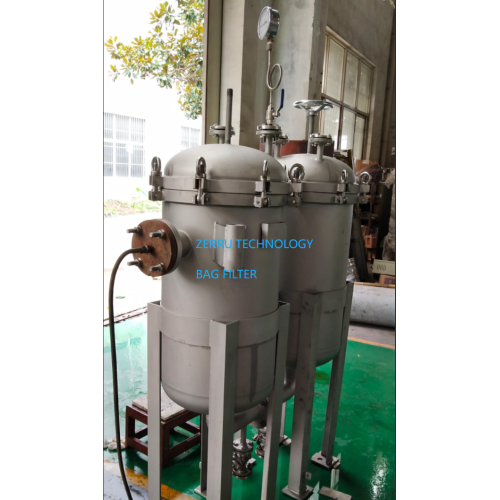

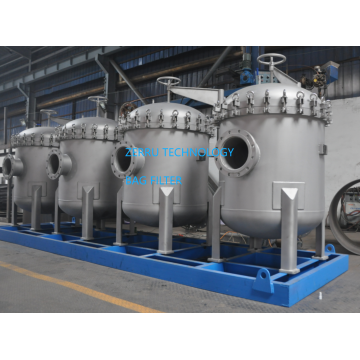

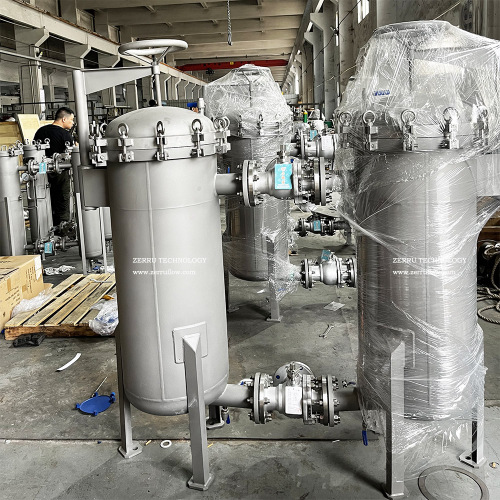

Stainless Steel Bag Filter Housing with casted, hinged cover

ZERRU'S ZD stainless steel bag Filter housings with casted, hinged cover and swin-ging bolts are manufactured in four assembly sizes. The four assembly sizes differ from one another in their filter area. They range from 0.05 m² filter area in the smallest version to 0.5 m² filter area in the largest version.

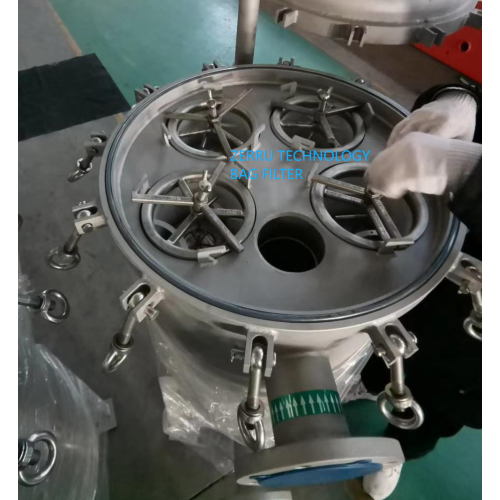

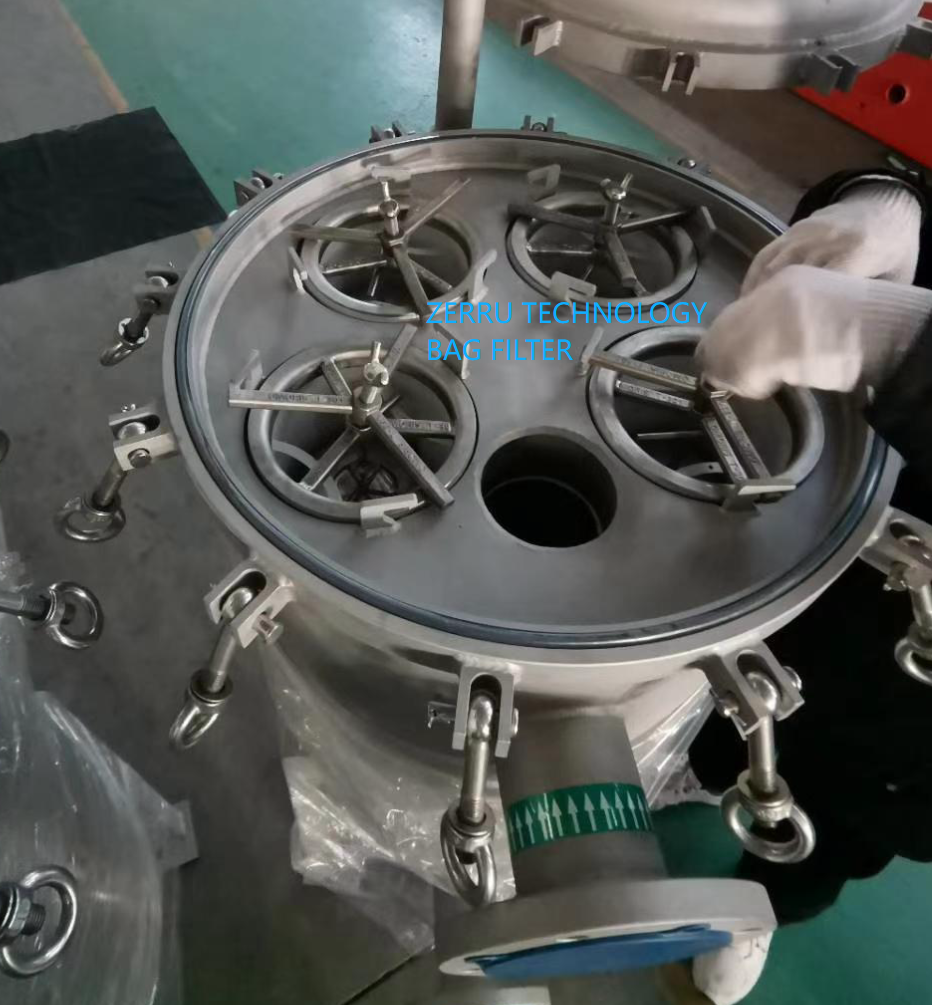

ZD bag filter housings are supplied with a basket made of stainless steel mesh and with a springsupported press-on device for the retention and sealing of the filter bags. An important feature of the ZD bag filter housings is the fact, that the position, type and size of the inlet and outlet connections are variable and are only manufactured at time of and according to customer specification.

ZDbag filter housings also can be offered with stainless steel strainer baskets or with our Filter elements. Options for all sizes are a tripod, a volume reducer for the reduction of the inside volume and a magnet insert for preseparation of ferrite particles.

Tecchnical Data

Material	Housing: stainless steel 304/316L/317L/904L Basket: stainless steel 304/316L/317L/904L O-Ring: Viton (Viton-FEP-encapsulated, EPDM, Silicone, VITON, NBR)
Inlet/Outlet	Size, type and position according to customer specification
Vent	2 x G¼“ internal thread
Drain	R 1“ external thread
Filter Bag	See table
Installations	Stainless steel 304
Differential pressure	max. 3.5 bar
Pressure	max. 10bar
Temperature	max. 95°C With PP-Filter bags max. 70°C, relating to bag material
Flow Rate	The maximum flow rate correlates to the nominal diameter of the housing connection and the characteristic curve of the flow rate of the chosen filter bag.

Features and benefits

bag filter housing made from stainless steel
casted, hinged cover and swinging bolts
two small sizes with 0.05 m² and 0.1 m² filter area and two large sizes with 0.25 m² and 0.5 m² filter area
position, type and size of the inlet and outlet connections are variable
basket made of stainless steel mesh
spring-supported press-on device made of stainless steel
Options for all sizes are a tripod, a volume reducer and a magnet insert
can be offered with stainless steel strainer baskets or Filter elements
