100% fully welded interface technology
● No resin, adhesive or surface treatment added
● Made from FDA approved materials
application
● Remove activated carbon
| Zhuo Nuo Filter Bag Performance Table | ||||
| Filter bag series | 材质 Material | Filter type | 通用型号 Universal model | Filtering accuracy |
| Standard filter bag | PO/PE/NMO | Relative and absolute filtering | 1#/2#/3#/4#/5# | 0.5~ 1000 |
| Durable needle felt filter bag | PP/PE/PTFE | Deep relative filtration | 1#/2#/3#/4#/5# | 0.5~2000 |
| Durable mesh filter bag | NMO/PP/PE | Surface relative filtration | 1#/2#/3#/4#/5# | 25~2000 |
| Multi layer high-efficiency filter bag | PP/PE | Deep relative filtration | 1#/2# | 0.2~50 |
| Absolute Precision Filter Bag | PP/PE | Deep absolute filtering | 1#/2# | 0.2~50 |
| Ultra long lifespan filter bag | PP/PE | Surface relative filtration | 1#/2# | 0.2~50 |
| Activated carbon filter bag | PP/PE | Deep adsorption filtration | 1#/2#/5# | 1~100 |
| Oil absorption filter bag | PP | Deep relative filtration | 1#/2#/5# | 1~50 |
| Folding filter bag | PP | Deep absolute filtering | 1#/2# | 1~50 |
| Anode filter bag | PE/PP | Surface relative filtration | 非标定制 | 50~200 |
| Zhuo Nuo Bag Filter model | |
| ① 过滤器型号缩写 Abbreviation of filter model | |
| ②设备壳体材料滤袋数量 Number of filter bags for equipment shell material S-stainless steel C-carbon steel P-duplex steel N-nickel alloy H-Hastelloy alloy | |
| CO Carbon Steel Lined PO CP Carbon Steel Lined PP CE Carbon Steel Lined PTFE | |
| The number represents the number of filter bags. For example: 3=3 bag filter | |
| ③ Flange specifications | PL Plate Flat Welding SO Neck Flat Welding WN Neck Flat Welding The number represents the flange diameter. For example: 100=DN100 |
| ④ Form of flange sealing surface | RF convex surface FF full plane RJ ring connection surface MFM concave convex surface TG tenon groove surface |
| ⑤ Flange standard | HG - Ministry of Chemical Industry Standard DIN - German Standard JIS - Japanese Standard GB - National Standard ANSI - American Standard |
| ⑥ Pressure rating of filter pipe flange | For example: P06=PN6 |
| ⑦ Filter filtration accuracy | For example: 5=5 μ m |
| ⑧ Internal and external surface treatment of filters | A-sandblasting B-polishing C-electrolysis D-painting E-spraying epoxy resin F-phosphating J-degreasing |
| A/b=sandblasting on the outer surface/polishing on the inner surface | |

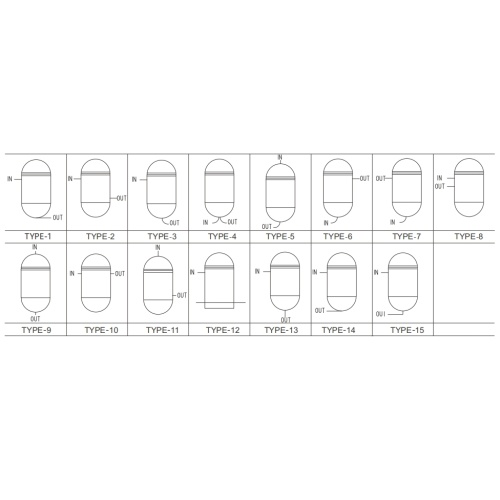

| ⑨ Filter flow direction selection, for example: T8=TYPE8 | |
