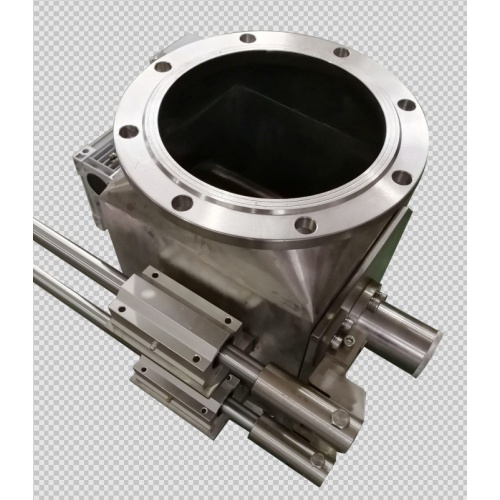

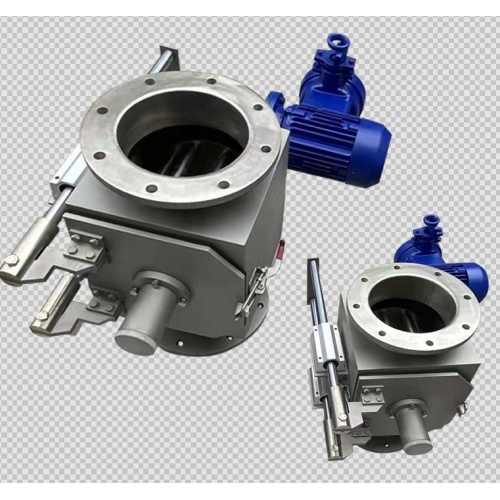

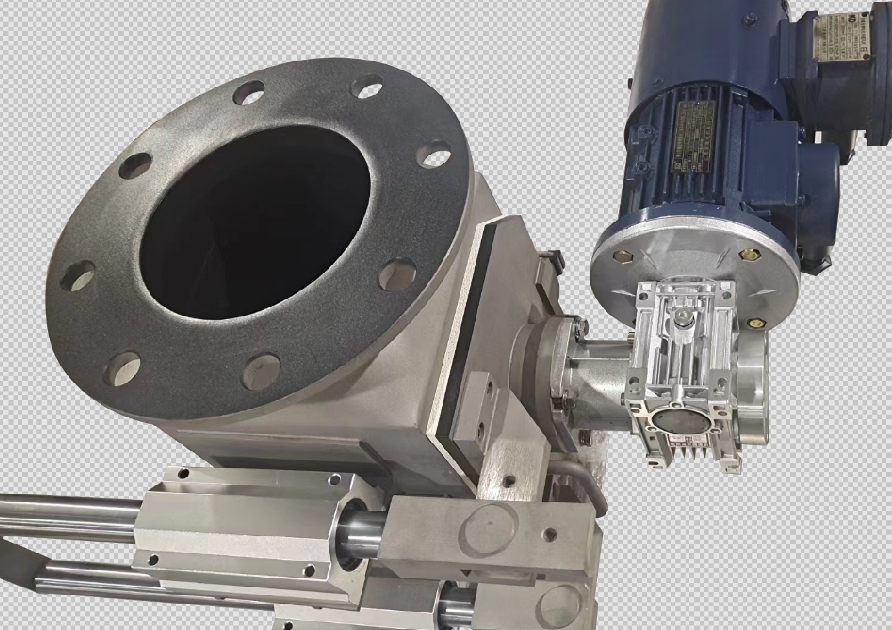

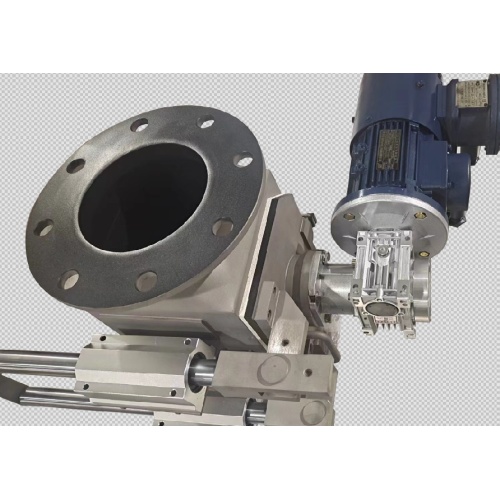

Rotating Magnetic Rod Filter

Our high-strength magnetism is easy to clean.

Rotating magnetic rod filters, such as the Rotatory Grid Magnetic Separator, offer a dynamic approach to removing contaminants from demanding process environments. These filters excel at capturing submicron iron and quasi-magnetic particles, providing unparalleled horizontal pollutant removal. The Rotational magnetic separator and Magnetic rotary separator are designed to maintain a high-strength magnetic field that is easy to clean, ensuring continuous and efficient operation.

The ZMC-D Magnetic easy clean filter - Triple, a Semi-automatic magnetic separator, incorporates an Easy clean grid magnetic separator that is part of the Magnetic drawer separators family. This high-intensity magnetic grid separator features a grille produced around a food-grade seal by a three-cone locking nut, ensuring uniform pressure and optimal filtration. The design allows for easy cleaning, reducing downtime and maintenance efforts, and is particularly effective at removing contaminants from dry powder and granular materials.

These separators are commonly installed throughout the entire processing facility to ensure pollutants are removed at the source of generation. The automatic cleaning Rotary Magnets feature electrical safety interlocks that can stop the process if the grid is unexpectedly opened, providing an additional layer of safety and control. The Magnetic rotary separator's continuous operation in industrial processes ensures that even trace amounts of contaminants are effectively managed, maintaining product quality and process integrity.

• Easy to clean
• Removes micron-sized contaminants
• High collection capacity
• Reduces 'spark' risk

Performance:

• Magnetic Performance: 7000, 9000, 10000
• Performance Reading on Tube Surface: Magnet Grade N35 & N45 – Inspected and confirmed via hysterograph prior to use
• Temperature: -20°C / +90°C
• Pressure: ± 0.2 Bar

Suitability:

• Suitable Products: Dry powders and granulates
• Suitable Location: Inlet / outlet points, pre- / post-silo and machinery points

Materials:

• Magnetic Material: Rare Earth Neodymium Iron Boron (NdFeB)
• Housing: 316 grade stainless steel
• Tubing: 316 grade stainless steel
• Sealing: Self-adhered white foam
• Tri-cone Nuts: Stainless Steel
• Surface Finish: Brushed internally / Polished externally to 0.6μm

Cleaning:

When the unit requires cleaning, simply remove the outer grid securing tri-cone locking nuts and remove the grid from the housing. Remove the central tri-cone locking nut and separate the grid assembly, allowing all attracted contamination to simply fall away.

Options:

• Stainless Steel Toggle Clamps
• Larger sizes available
• Pharmaceutical specification
• Safety relay switches
• Metal Detectable Seal
• Higher temperature versions available
