Wuxi Zerru Technology Co., Ltd

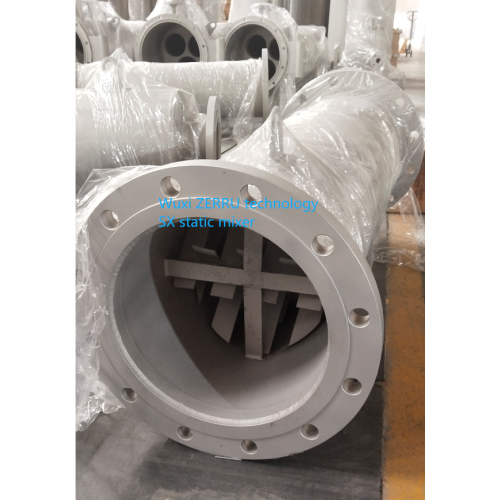

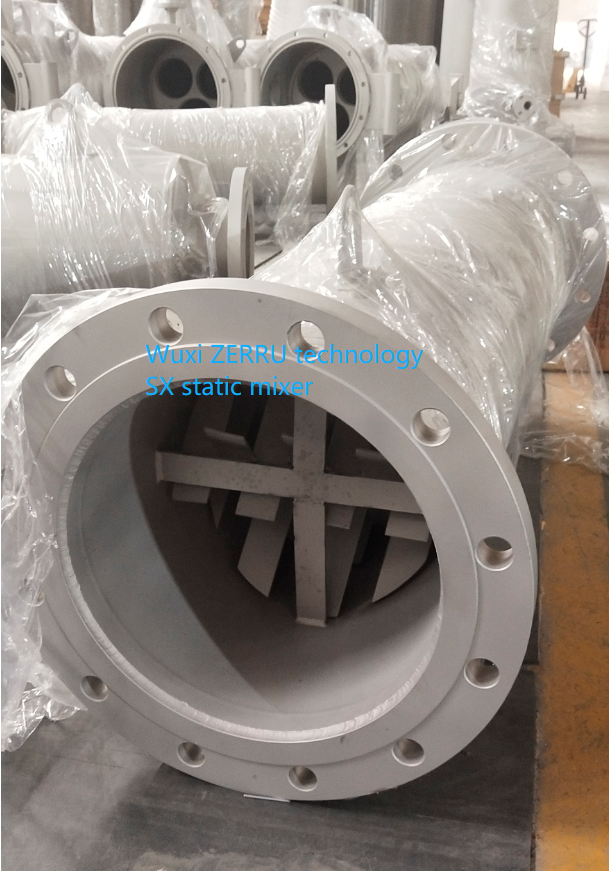

Model No.: DN350 SX
| Aspect | Details & Analysis |
|---|---|
| Mixing Efficiency | Extremely High. The unique cross-corrugated plate design creates complex flow paths that induce strong turbulence and shear, achieving homogeneous mixing in a very short pipe length (often in just 3-5 elements). |
| Pressure Drop | Relatively High. The complex flow path offers significant resistance to flow, resulting in a pressure drop typically higher than that of other static mixer types like SK (spiral) or SV (helical) designs. This is the trade-off for achieving highly efficient mixing. |
| Fluid Compatibility | Ideal for low to medium viscosity fluids (e.g., water, solvents, various chemicals) in liquid-liquid mixing, gas-liquid dispersion, and enhanced heat transfer. It can also handle fluids with low solid content but is less resistant to clogging than the SK type. |
| Compact Design | The short element length makes the overall design very compact, providing a large surface area for mixing and high performance in limited installation space. |
| No Moving Parts | Like all static mixers, the SX type requires no external power, ensuring reliable operation and very low maintenance costs. |
To better understand the SX type, it's useful to compare it with the SK type (Single Spiral) mentioned previously:
| Feature | SX Type (Cross-Corrugated Plates) | SK Type (Single Spiral) |
|---|---|---|
| Internal Structure | Interlocking, perpendicular corrugated plates | Alternating left-hand and right-hand spiral elements |
| Mixing Mechanism | Primarily division and recombination; high shear | Primarily division and rotation; flow splitting |
| Key Advantage | Extremely high efficiency, very compact | Lower pressure drop, high resistance to clogging, suitable for slurries |
| Key Disadvantage | Higher pressure drop | Requires longer pipe length to achieve similar mixing效果 (effect) |
| Typical Applications | Water treatment, chemical reactor feed mixing, pH neutralization, rapid cooling/heating | Petroc |
Product Categories : Static Mixer > SX Static Mixer
