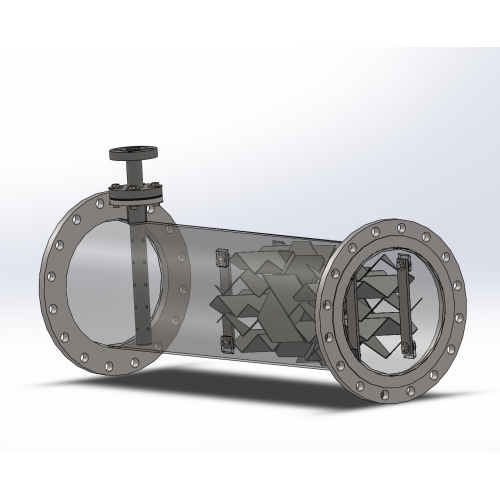

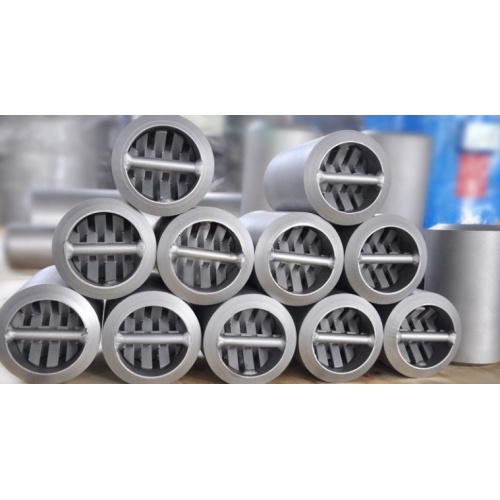

Stainless Steel SX Static Mixer

Static Mixer Overview

A static mixer is an efficient mixing device without moving parts, offering a range of benefits over traditional mixing methods. The SX Static Mixer with stainless steel, for instance, is renowned for its durability and suitability for use in applications where corrosion resistance is crucial, such as in the food and pharmaceutical industries.

In addition to being widely used in the petroleum refining and chemical industries, static mixers like the Sanitary static mixer are also widely used in sectors such as medicine, food, mining, plastic extrusion, and environmental protection. These mixers are designed to meet high standards of hygiene and are often used in processes where cleanliness and purity are paramount.

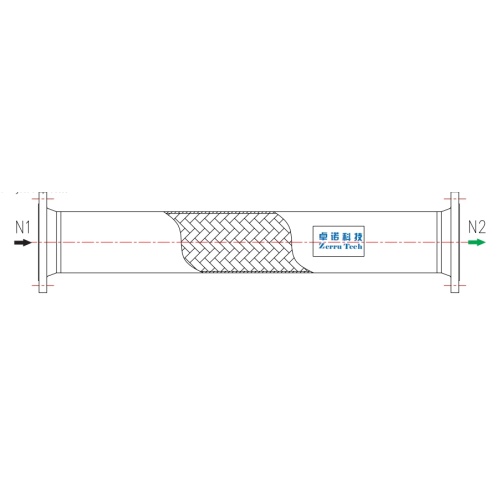

The Pipeline static mixer is another type of static mixer that is directly installed within pipelines, providing an efficient and space-saving solution for in-line mixing. This type of mixer is particularly useful for processes where space is limited or where a continuous flow of mixed product is required.

Compared with traditional mixing equipment such as mixers, colloid mills, homogenizers, and Venturi tubes, static mixers have the advantages of simple process, compact structure, low energy consumption, low investment, high operational flexibility, no need for maintenance, and good mixing performance. Motionless mixing, as it is often referred to, is a term that underscores the fact that these mixers achieve effective mixing without any moving parts, reducing the risk of mechanical failure and maintenance needs.

Any process involving the mixing, emulsification, neutralization, absorption, extraction, reaction, and enhanced heat transfer of liquid-liquid, liquid-gas, liquid-solid, and gas can replace traditional related equipment with static mixers. The use of static mixers, such as the SX Static Mixer with stainless steel and the Sanitary static mixer, not only improves mixing efficiency but also contributes to cost savings and operational reliability in a variety of industrial applications.

SX Type Unit Description

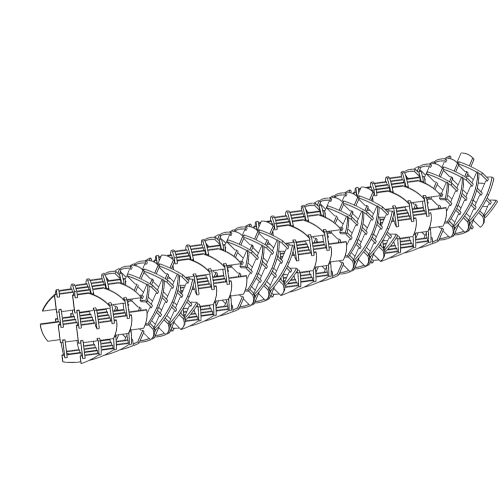

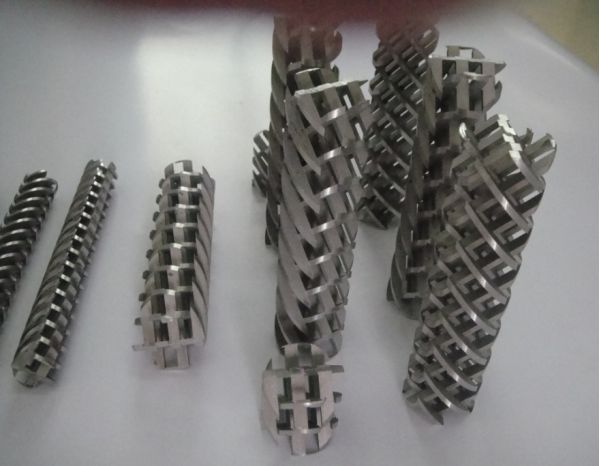

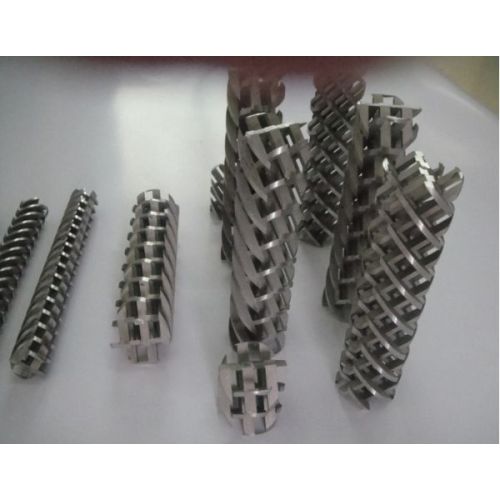

The SX type unit consists of many X-type units formed by intersecting horizontal bars in a certain pattern. Technical feature: The mixing non-uniformity coefficient is σ X ≤ 1-5%. Suitable for medium to high viscosity liquid-liquid mixtures with a viscosity of ≤ 10 centipoise, reaction absorption processes, or mixing and reaction processes for producing high polymer materials. The use effect is better when the processing volume is large.

Typical Applications

• Alkaline injection process for chlorinated bleached crude oil from high polymer mixed light ketone benzene dewaxed oil paper pulp

Technical Data
