ZSJ Precision FilterThe Zhuo Nuo

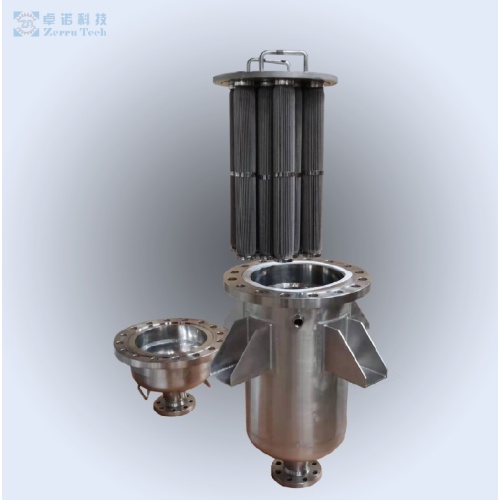

ZSJ Precision (Security) Filter Series is made of high-quality stainless steel shell, and the filter element is made of formed filter material (polypropylene fiber melt blown or wire wound honeycomb). Under pressure, the original liquid passes through the filter material, and the filter residue remains on the filter material. The filtrate flows out through the filter material, effectively removing impurities, precipitates, suspended solids, and bacteria in water, thereby achieving the purpose of filtration.
Product OverviewPrecision filters are generally installed in front of pressure vessels to remove small particles with a turbidity of 1 degree or higher, in order to meet the requirements of subsequent processes for inlet water; Sometimes it is also set at the end of the entire water treatment system to prevent small particles from entering the finished water. Most precision filters use stainless steel as the outer shell and are equipped with filter elements (such as PP cotton) inside. They are mainly used after multimedia pretreatment filtration and before membrane filtration equipment such as reverse osmosis and ultrafiltration. Used to filter out small substances (such as fine quartz sand, activated carbon particles, etc.) that have been filtered through multiple media, to ensure water quality filtration accuracy and protect membrane filtration components from damage caused by large particles. The
precision filtration device is equipped with a precision filter element, and different filtration accuracies are selected according to different usage scenarios to ensure the accuracy of the effluent and the safety of the downstream membrane components.
Product featuresCan effectively remove suspended solids, rust, etc. in liquids and withstand high filtration pressure
The unique deep mesh structure enables the filter element to have high pollution absorption capacity. The filter element can be made of various materials to adapt to different usage conditions
Small size, large filtration area, low pressure loss, and long service life
Introduction to filter characteristics:Polypropylene folding filter cartridge: suitable for pre filtration of process water
Polyether sulfone folding filter cartridge: suitable for terminal filtration of pure water
PTFE folding filter cartridge: suitable for sterilization and filtration of gas and liquid
Stainless Steel Folding Filter Element: suitable for repeated cleaning and high-temperature and high-pressure filtration
Stainless steel folding filter element: suitable for automatic cleaning filtration
High flow filter element: suitable for high flow and high pollution filtration
ZSJ-J01 Welding Single Core Precision FilterThe Zhuo Nuo ZSJ-J01 series precision filter can be equipped with a microporous filter element (length can be selected from 5 to 40 inches) in different specifications, and can achieve different flow rates according to different materials, pore sizes, and lengths. The design of sanitary grade structures can be applied to special industries such as pharmaceuticals, food and beverage.
The connection form of the filter element of the filter is generally 226 or threaded.
The pressure gauge can be equipped with either a regular pressure gauge or a diaphragm pressure gauge. Each unit undergoes strict pressure testing and inspection before leaving the factory.
Technical parameterMaterials of each component
Shell materials: carbon steel, stainless steel 304, 316L
Filter material: solution spray, fiberglass, PP, PTFE; stainless steel housing gasket: nitrile rubber, optional fluororubber, PTFE
performance parameter
Filtering accuracy: 0.003 microns~100 microns Temperature resistance: 80 ℃
Pressure resistance: room temperature limit 1.6Mpa
Flow rate: maximum 5T/H - depends on accuracy and filter cartridge
Surface treatment: polishing, electrolytic polishing, food grade polishing, sandblasting, painting
