Wuxi Zerru Technology Co., Ltd
Brand: zerru
Transportation: Ocean,Land,Air
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF

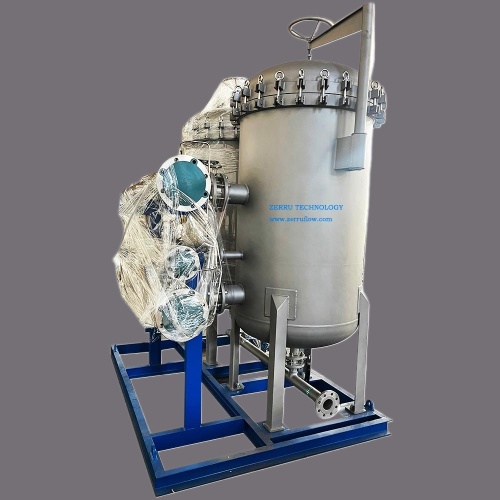

The Zerru ZSJ-J01 series precision filter can be equipped with a microporous filter element (length can be selected from 5 to 40 inches) in different specifications, and can achieve different flow rates according to different materials, pore sizes, and lengths. The design of sanitary grade structures can be applied to special industries such as pharmaceuticals, food and beverage.
The connection form of the filter element of the filter is generally 226 or threaded.
The pressure gauge can be equipped with either a regular pressure gauge or a diaphragm pressure gauge. Each unit undergoes strict pressure testing and inspection before leaving the factory.
Technical parameter
Materials of each component
Shell materials: carbon steel, stainless steel 304, 316L
Filter material: solution spray, fiberglass, PP, PTFE; stainless steel housing gasket: nitrile rubber, optional fluororubber, PTFE
performance parameter
Filtering accuracy: 0.003 microns~100 microns Temperature resistance: 80 ℃
Pressure resistance: room temperature limit 1.6Mpa
Flow rate: maximum 5T/H - depends on accuracy and filter cartridge
Surface treatment: polishing, electrolytic polishing, food grade polishing, sandblasting, painting
Selection reference
filter size
| 型号 Model | Filter Element Size (in) | Filter Element Size (mm) | Equipment size (mm)(mm) | Import and Export (in) | Discharge outlet (in) | Air vent(in) |
| ZSJ-J01－10 | 10" | 65x250 | 100x520 | 1" | 1/2" | 1/2" |
| ZSJ-J01－20 | 20" | 65x500 | 102x760 | 1" | 1/2" | 1/2" |
| ZSJ-J01－30 | 30" | 65x750 | 102x1000 | 1" | 1/2" | 1/2" |
The Zerru ZSJ-J01 series precision filter is a high-performance filtration system designed for industries that require precise and reliable particle removal. This advanced filter can be customized with a microporous filter element, available in lengths ranging from 5 to 40 inches, allowing users to select the optimal size based on their specific application needs. The versatility of this system enables it to achieve various flow rates depending on the material, pore size, and length of the filter element used. With its sanitary grade construction, the Zerru ZSJ-J01 series is particularly well-suited for use in sensitive environments such as pharmaceuticals, food and beverage processing, and other critical applications where cleanliness and compliance are essential.
Product Categories : Precision Filter
