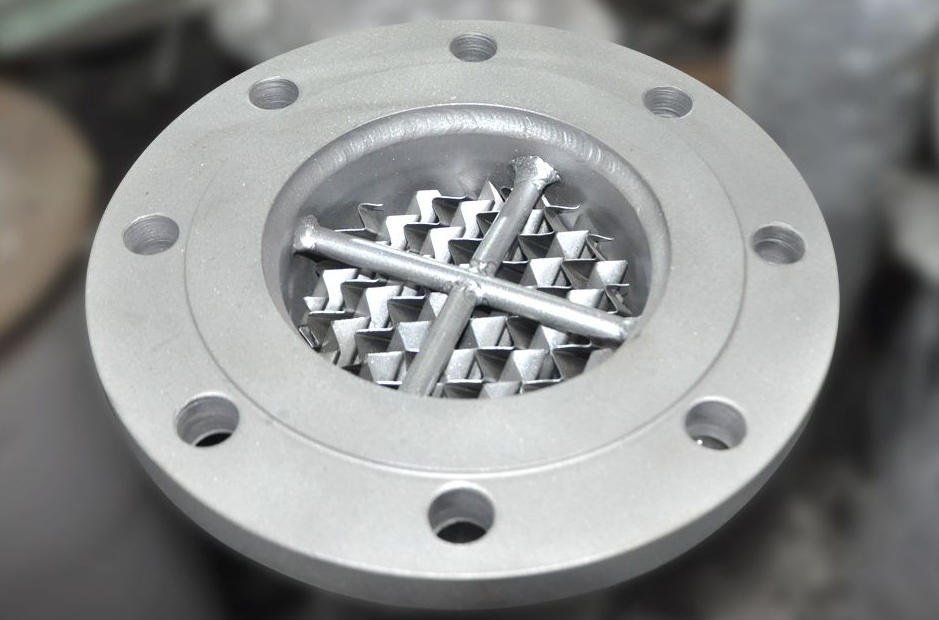

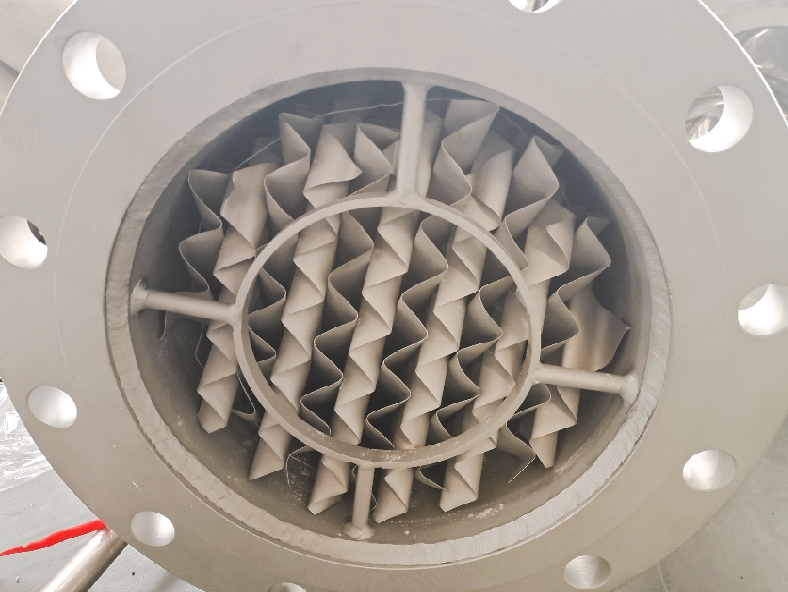

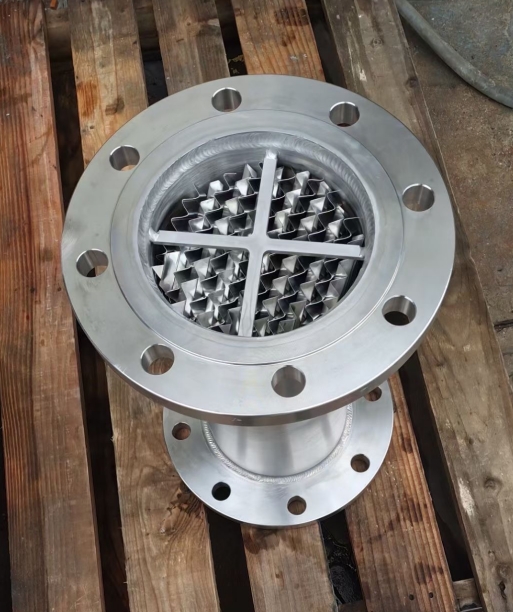

The Stainless SV Static Mixer is a premium mixing solution designed for industries that demand robust and corrosion-resistant equipment. Crafted from stainless steel, this mixer is ideal for applications where durability and resistance to various chemicals are essential. It is particularly effective in handling high viscosity liquid static mixer processes, where traditional mixers may struggle due to the thick and resistant nature of the media being mixed.
The High viscosity liquid static mixer is a specialized version of the Stainless SV static mixer, engineered to tackle the challenges of blending thick liquids that have high resistance to flow. This mixer ensures that even the most viscous fluids are thoroughly mixed, which is crucial in industries such as pharmaceuticals, food processing, and chemical manufacturing where uniformity in the final product is paramount.
In addition to the Stainless SV static mixer and the High viscosity liquid static mixer, there is also the Blade static mixer, which features a series of blades or impellers that create a turbulent flow pattern within the mixing chamber. This design enhances the mixing efficiency, ensuring that even the most difficult-to-mix substances are well combined. The Blade static mixer is an excellent choice for applications requiring rapid and thorough mixing, such as in the preparation of emulsions, suspensions, and solutions.
Together, these mixers—Stainless SV static mixer, High viscosity liquid static mixer, and Blade static mixer—offer a comprehensive range of solutions for diverse mixing challenges across various industries, providing efficient and reliable mixing performance.
| 型号 Model | Nominal diameter DN(mm) | 水力直径 Hydraulic diameter dH(mm) | 流量 flow Q(m³/h) |
|---|---|---|---|
| SV20-2.3 | DN20 | 2.3 | 0.5~1.2 |
| SV25-2.3 | DN25 | 2.3 | 0.9~1.8 |
| SV32-3.5 | DN32 | 3.5 | 1.4~2.9 |
| SV40-3.5 | DN40 | 3.5 | 2.2~4.5 |
| SV50-3.5 | DN50 | 3.5 | 3.5~7 |
| SV80-5 | DN80 | 5 | 9~18 |
| SV100-5 | DN100 | 5 | 14~28 |
| SV150-7 | DN150 | 5-7 | 30~36 |
| SV200-5~20 | Dn200 | 5~20 | 56~110 |
| SV250-5~20 | Dn250 | 5~20 | 88~176 |
| SV300-5~30 | Dn300 | 5~30 | 125~250 |
| SV350-7~30 | Dn350 | 7~30 | 173~346 |
| SV400-7~30 | Dn400 | 7~30 | 226~452 |
| SV500-7~30 | Dn500 | 7~30 | 353~706 |
| SV600-7~30 | Dn600 | 7~30 | 505~1010 |
| SV1200-15~30 | Dn1200 | 15~30 | 1630~3260 |
Product Categories : Static Mixer > SV Static Mixer
