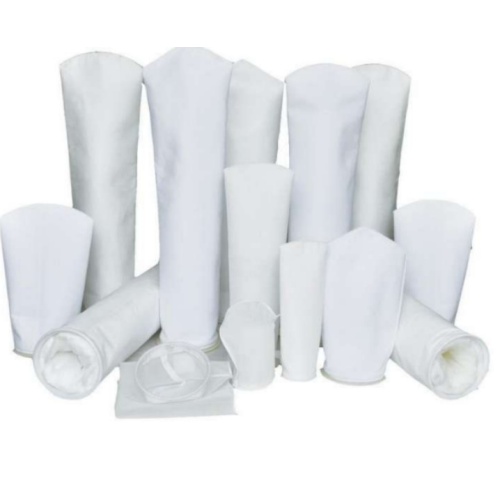

Absolute Precision Filter Bag

The ZGD-04 series Filter bags are designed for applications that strictly require a filtration efficiency of over 100%. The filter bags can ensure a filtration effect from 1 to 25 microns.

Characteristics of filter bags

Absolute efficiency filter bags and Absolute Precision Filter bags are designed to provide the highest level of filtration, ensuring that liquids pass through a meticulous cleaning process. These filter bags are engineered to capture even the smallest of particles, making them ideal for applications where absolute purity is required.

Multi-filament filter bags are constructed with a weave of multiple filaments, which enhances their strength and durability. This construction also allows for a more uniform flow of liquid, reducing the risk of clogging and extending the life of the Filter Bag. These bags are particularly effective in applications where high flow rates and long service life are necessary.

The Oil removal filter bag is a specialized type of filter bag that is specifically designed for the removal of oil and other contaminants from liquids. It is highly effective in applications such as industrial processes, where the removal of oil is critical to prevent equipment damage and ensure product quality.

In summary, these filter bags—whether absolute efficiency, absolute precision, multi-filament, or oil removal—are essential tools in maintaining the quality and purity of liquids across various industries. They offer a range of filtration capabilities, from general use to specialized applications, providing a solution for a wide array of liquid filtration needs.

100% fully welded interface technology

• Safe and stable sealing ring
• 100% pure melt-blown polypropylene or polyester structure
• No resin, adhesive, or surface treatment added
• Made from FDA-approved materials
• All filter bags are made of materials listed by the US Food Administration as food contact materials

Application

• Filter beer, wine, whiskey, and other beverages
• Remove fine particles during part cleaning process
• Final filtration of enamel
• Final filtration of vinegar
• Remove activated carbon

Zhuo Nuo Filter Bag Performance Table

Zhuo Nuo Bag Filter Model

1. Filter model abbreviation: Abbreviation of filter model
2. Equipment shell material and number of filter bags: S-stainless steel, C-carbon steel, P-duplex steel, N-nickel alloy, H-Hastelloy alloy
3. Flange specifications: PL Plate Flat Welding, SO Neck Flat Welding, WN Neck Flat Welding. The number represents the flange diameter. For example: 100=DN100
4. Type of flange sealing surface: RF convex surface, FF full plane, RJ ring connection surface, MFM concave convex surface, TG tenon groove surface
5. Flange standard: HG-Chemical Industry Ministry Standard, DIN-German Standard, JIS-Japanese Standard, GB-National Standard, ANSI-American Standard
6. Filter pipe flange pressure rating: For example: P06=PN6
7. Filter filtration accuracy: For example: 5=5 μm
8. Internal and external surface treatment of filters: A-sandblasting, B-polishing, C-electrolysis, D-painting, E-spraying epoxy resin, F-phosphating, J-degreasing

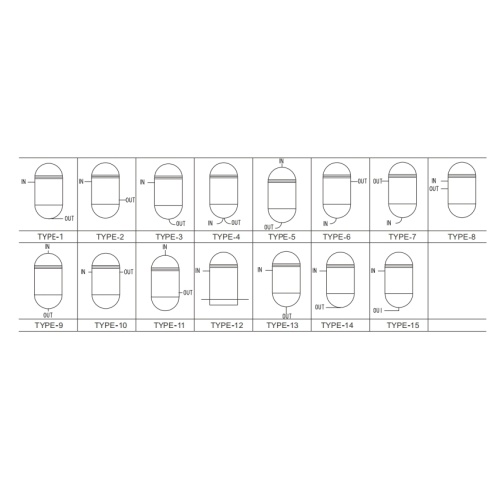

9. Filter flow direction selection, for example: T8=TYPE8
