Wuxi Zerru Technology Co., Ltd
Brand: Zerru
Transportation: Ocean,Land,Air
Payment Type: T/T,L/C
Incoterm: FOB,CFR,CIF

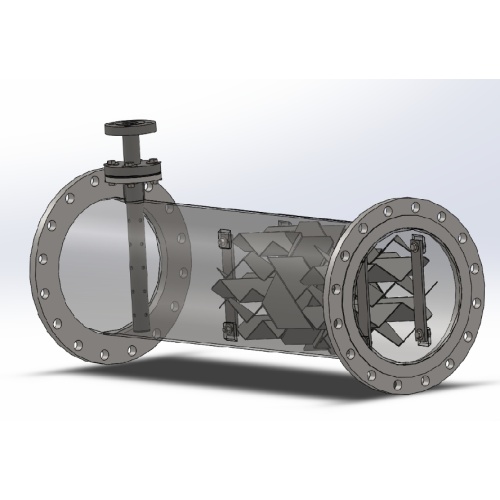

The Super stainless SX Static Mixer type unit consists of multiple X-type units formed by intersecting horizontal bars in a specific pattern, designed for medium to high viscosity liquid-liquid mixtures with a viscosity of ≤ 10 centipoise. Technical Feature: The mixing non-uniformity coefficient for the customized Static Mixer is σX ≤ 1-5%, ensuring a high level of mixing efficiency. This PP static mixer is also suitable for mixing in reaction absorption processes or the production of high polymer logistics. The reaction process is more effective when used with a larger processing capacity, making it an ideal choice for various industrial applications.
| Model | Nominal Diameter DN (mm) | Hydraulic Diameter dH (mm) | Flow Rate Q (m³/h) |
|---|---|---|---|
| SX50-12 | DN50 | 12 | 3.5~7.0 |
| SX65-16 | DN65 | 16 | 6~12 |
| SX80-20 | DN80 | 20 | 9~18 |
| SX100-25 | DN100 | 25 | 14~28 |
| SX150-31 | DN150 | 31 | 22~44 |
| SX200-50 | DN200 | 50 | 56~110 |
| SX300-62 | DN300 | 62 | 88~176 |
| SX300-75 | DN300 | 75 | 125~250 |
| SX350-87 | DN350 | 87 | 173~346 |
Product Categories : SX Static Mixer
