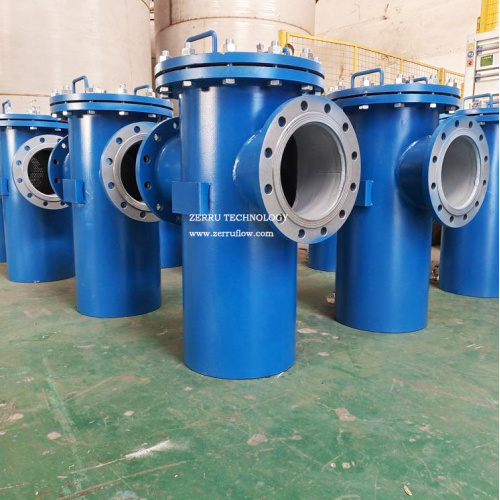

Petrochemical basket filters with 304

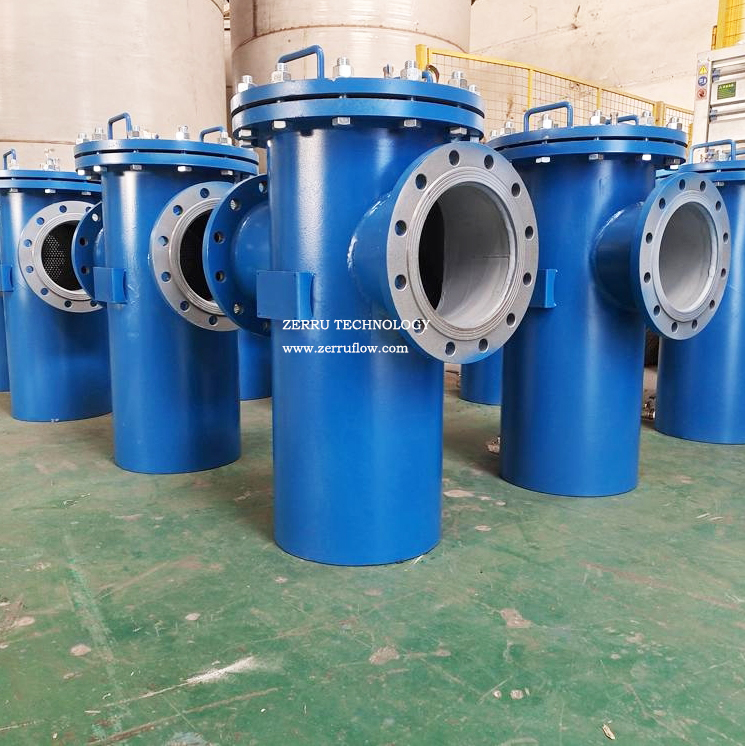

ZRB basket filter is a small equipment used to remove small amounts of solid particles from liquids, mainly composed of a connecting pipe, main cylinder, flange, flange cover, filter basket, and fasteners. When the fluid enters the filter basket with a certain specification, its impurities are blocked, and the clean fluid passes through the filter basket and is discharged from the filter outlet. When cleaning is required, close the inlet and outlet valves of the equipment, unscrew the bottom discharge port of the equipment, drain the residual liquid inside the cylinder, remove the fasteners of the equipment flange cover, take out the filter basket, clean it, and then reinstall it.

characteristic
There are various forms that can be adjusted according to usage and working conditions. The length, diameter, material, and pressure can be customized according to user requirements;
Compact structure, easy installation and cleaning; The filtration area is large, and the  filtration area is about 3-5 times the cross-sectional area of the inlet and outlet; Large amount of pollution absorption;
There are various forms, which can be divided into: straight through flat bottom basket filter, straight through arc bottom basket filter, high and low connection flat bottom basket filter, high and low connection arc bottom, basket filter double filter basket basket filter, jacket insulation basket filter

technical parameter

安装尺寸Dimensions

Note: The size marked with * is the size of the outer diameter D1 of the steam jacket.
