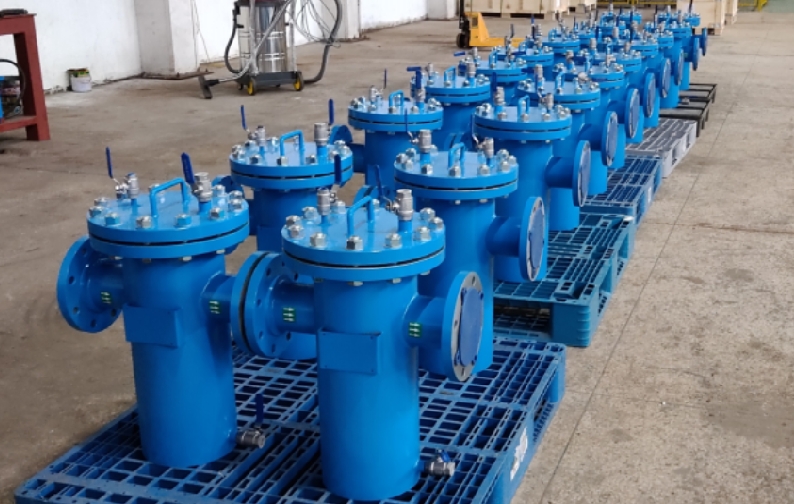

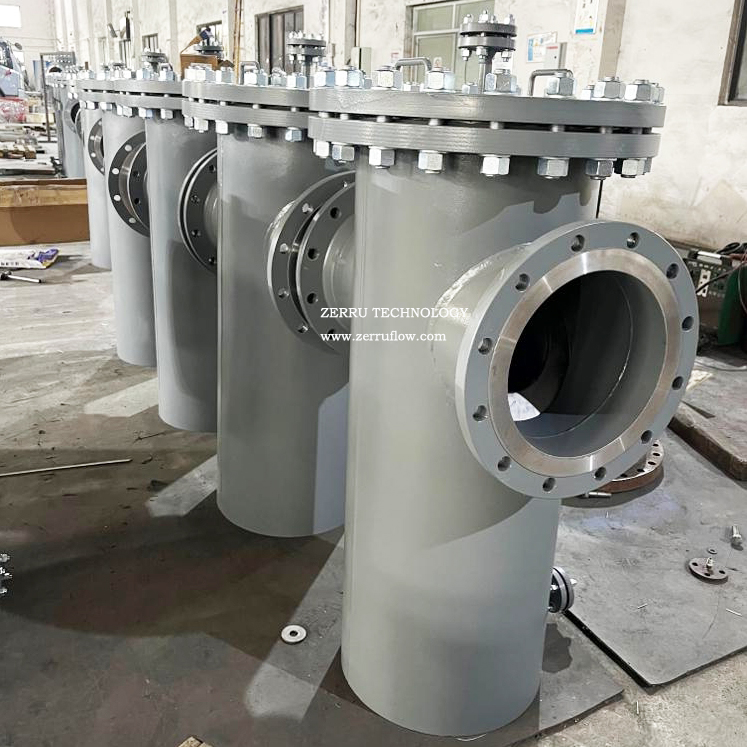

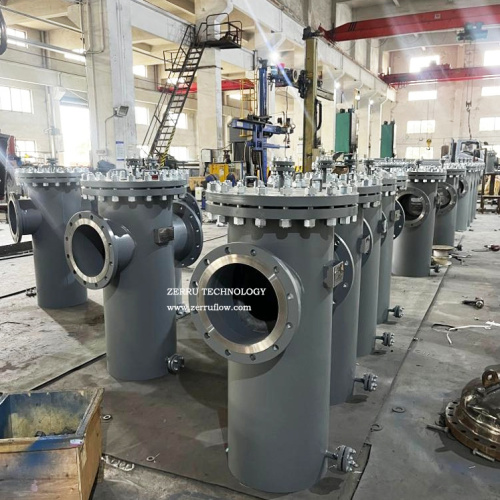

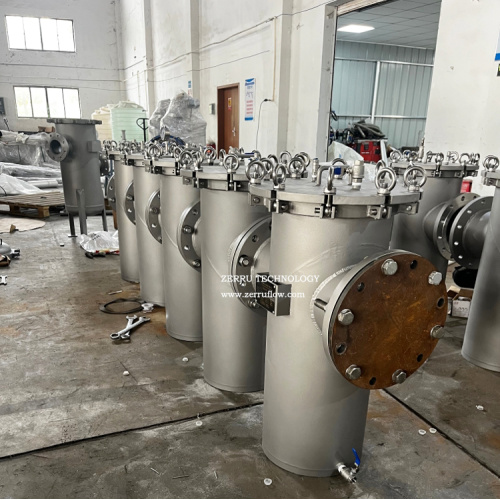

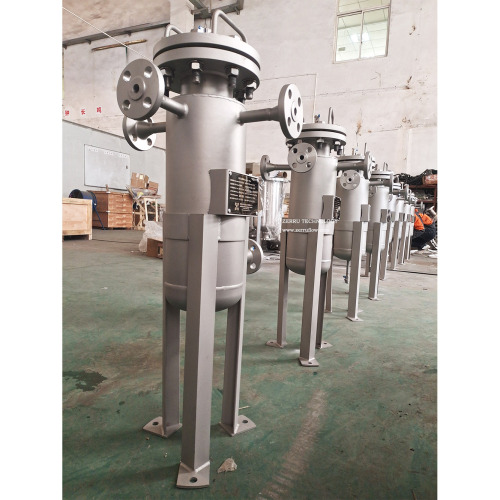

Carbon Steel ZRB Basket-Strainer

The ZRB Basket Filter, such as the Carbon Steel ZRB Basket-strainer, is a compact device designed to remove small quantities of solid particles from liquids. It primarily consists of a connecting pipe, main cylinder, flanges, flange cover, Filter basket, and fasteners. This type of Basket Strainer is available in various materials to meet diverse industrial requirements, including the Nickel Alloy Basket-strainer and Duplex Basket-strainer for highly corrosive environments, as well as the Carbon Steel Basket Strainer for general-purpose applications.

When fluid enters the filter basket with a specified configuration, its impurities are trapped by the intricate design of the basket, acting as a barrier. The purified fluid then flows through the filter basket and exits via the filter outlet. Whether it’s a Carbon Steel ZRB Basket-strainer, Nickel Alloy Basket-strainer, or Duplex Basket-strainer, the filter basket plays a critical role in maintaining fluid cleanliness.

For maintenance, the cleaning process is simple. First, shut off the inlet and outlet valves to halt the fluid flow. Next, open the bottom drainage port to empty the residual liquid within the cylinder. Afterward, remove the fasteners of the flange cover to access the filter basket. Once the basket is extracted, it can be cleaned to eliminate any accumulated debris. This ensures the sustained efficiency of the ZRB basket filter, regardless of its material—whether it’s a Carbon Steel ZRB Basket-strainer, Nickel Alloy Basket-strainer, Duplex Basket-strainer, or Carbon Steel Basket Strainer. Once cleaned, the basket can be reinstalled, and the equipment can resume operation.

Characteristics

• Various configurations adaptable to usage and working conditions; customization options include length, diameter, material, and pressure based on user requirements;
• Compact design, facilitating easy installation and cleaning;
• Larger filtration area, approximately 3-5 times the cross-sectional area of the inlet and outlet;
• High capacity for contaminant absorption;
• Variety of designs, including: straight-through flat-bottom basket filter, straight-through arc-bottom basket filter, high-low connection flat-bottom basket filter, high-low connection arc-bottom basket filter, double-basket filter, and jacket-insulated basket filter.

Technical Parameters
