ZSX-X01 Suction Type Backwash Filter

ZSX-X01 Suction Type Backwash Filter

The ZSX-X01 suction type backwash filter, also referred to as the Suction Type Self-Cleaning Filter, offers a fully automatic backwash cleaning operation, enabling continuous separation of impurities from water and other liquids. This Automatic Backwash Filter is highly efficient in maintaining low pressure differences, ensuring ease of operation and reliability. Thanks to its effective backwash system, the Filter Element experiences a slower rate of blockage compared to other cylindrical filters, resulting in reduced frequency of filter element replacement. This saves time and lowers part consumption costs.

The Pneumatic Scraper Self-Cleaning Filter and the Pneumatic Automatic Self-Cleaning Filter are designed to handle high-viscosity, corrosive, abrasive, or otherwise challenging fluids. These filters are simple to maintain and operate, and they can sustain optimal performance even under harsh operating conditions. One of their key advantages is the low initial investment, making the Cylinder Scraper Self-Cleaning Filter an ideal choice for various industrial applications.

The Auto Backwash Self-Cleaning Filter ensures uninterrupted fluid flow during the backwashing process, a significant benefit in industries where downtime can be costly. This Fully Automatic Cleaning Filter operates efficiently and environmentally friendly, effectively reducing emissions' impact.

Product Advantages

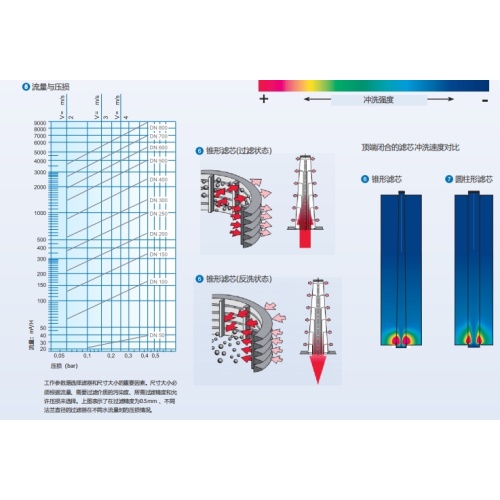

• Large filtration area, low pressure loss, maximum allowable flow rate: 9000m³/H
• Long service life and maintenance cycle
• Rapid cleaning and maintenance
• Accurate control of backwash device
• Wedge-shaped filter ensures filtration accuracy, with a maximum filtration accuracy of 25µm
• Low backwash water volume, 10-60L per cycle
• Plastic flushing film is automatically adjustable, with sliding bearings and plastic flushing shaft sleeves featuring anti-fouling seals that are resistant to wear

Operational Principle

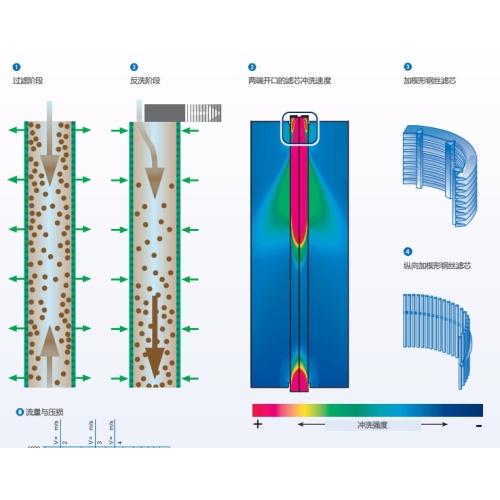

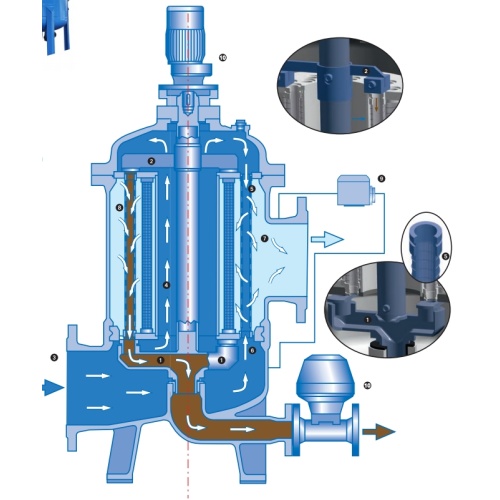

Filtering Mode: The liquid to be filtered enters the bottom of the filter through the inlet flange 3, and approximately 50% of the liquid to be filtered enters the top of the filter via the middle riser 4 before descending through the filter element 5. The remaining liquid flows upward through filter element 6. The filtered liquid passes through the gap 7 of the filter element. The filter clearance can reach up to 25 microns.

Backwashing Mode: During backwashing, the Filter Cartridges are cleaned sequentially without interrupting the filtration process. The drive motor rotates the flushing arm 1, while simultaneously opening the drain valve 11. The pressure differential within the filter element (system pressure vs. atmospheric pressure) causes the water flowing through the filter element to reverse direction, flushing out organic and inorganic particles trapped in the filter element. When the outlet pressure of the filter falls below 2 kg or contains stubborn impurities, an external auxiliary medium interface can be installed at the top of the filter. Backwashing is triggered either by the pressure difference between the inlet and outlet of the filter (pressure difference monitoring device 9) or by a customizable time interval.
