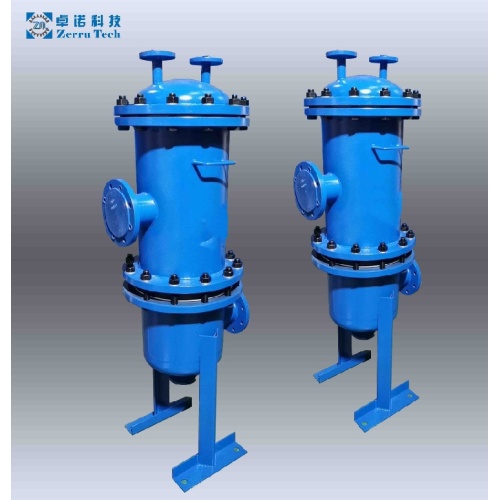

ZSJ Precision Filter

The Zhuo Nuo ZSJ Precision (Security) Filter Series is made of high-quality stainless steel shell, and the Filter Element is made of formed filter material (polypropylene fiber melt blown or wire wound honeycomb). Under pressure, the original liquid passes through the filter material, and the filter residue remains on the filter material. The filtrate flows out through the filter material, effectively removing impurities, precipitates, suspended solids, and bacteria in water, thereby achieving the purpose of filtration.

Product Overview

Precision filters play a crucial role in water treatment systems, ensuring the quality of water before it enters critical processes or after it has been treated. These filters are generally installed in front of pressure vessels to remove small particles with a turbidity of 1 degree or higher, in order to meet the requirements of subsequent processes for inlet water. Sometimes, they are also set at the end of the entire water treatment system to prevent small particles from entering the finished water.

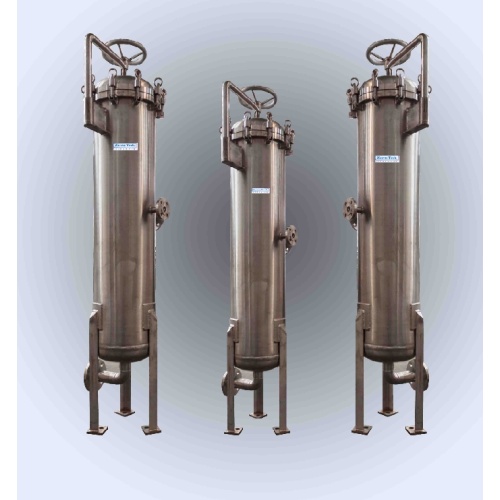

Most precision filters, such as the Precision filter with stainless steel and the Coated Stainless Steel Precision Filter, use stainless steel as the outer shell, which provides durability and resistance to corrosion. This material is ideal for withstanding the harsh conditions often present in water treatment environments. Equipped with filter elements (such as PP cotton) inside, these filters are designed to capture particles that could otherwise compromise the integrity of the water being treated.

The Precision Filter with Carbon Stainless is a specialized version that incorporates activated carbon, which enhances its ability to remove not only particulate matter but also organic compounds and chlorine, improving the taste and odor of the water. This makes it particularly useful in applications where water quality is of utmost importance.

The Super Duplex Precision Filter is constructed with a super duplex stainless steel, offering exceptional strength and corrosion resistance. This high-performance filter is designed for the most demanding applications where both high pressure and corrosive conditions are present.

They are mainly used after multimedia pretreatment filtration and before membrane filtration equipment such as reverse osmosis and ultrafiltration. Used to filter out small substances (such as fine quartz sand, activated carbon particles, etc.) that have been filtered through multiple media, these filters ensure water quality filtration accuracy and protect membrane filtration components from damage caused by large particles.

The precision filtration device is equipped with a precision filter element, and different filtration accuracies are selected according to different usage scenarios to ensure the accuracy of the effluent and the safety of the downstream membrane components. Whether it's a Precision filter with stainless steel for general purposes, a Precision Filter with Carbon Stainless for organic removal, or a Super Duplex Precision Filter for high-pressure applications, these devices are essential for maintaining the purity and safety of water in a variety of industrial and residential settings.

Product Features

• Can effectively remove suspended solids, rust, etc. in liquids and withstand high filtration pressure
• The unique deep mesh structure enables the filter element to have high pollution absorption capacity. The filter element can be made of various materials to adapt to different usage conditions
• Small size, large filtration area, low pressure loss, and long service life

Introduction to Filter Characteristics:

• Polypropylene folding filter cartridge: suitable for pre-filtration of process water
• Polyether sulfone folding filter cartridge: suitable for terminal filtration of pure water
• PTFE folding filter cartridge: suitable for sterilization and filtration of gas and liquid

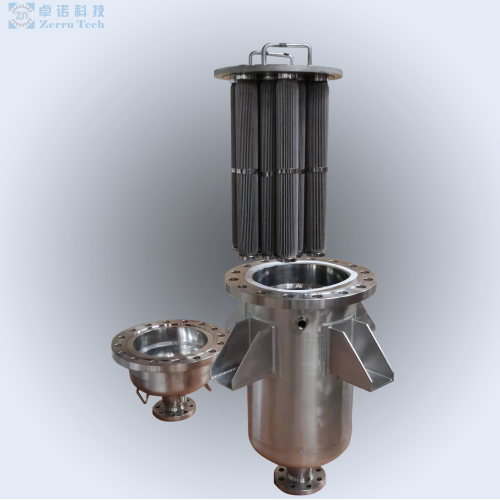

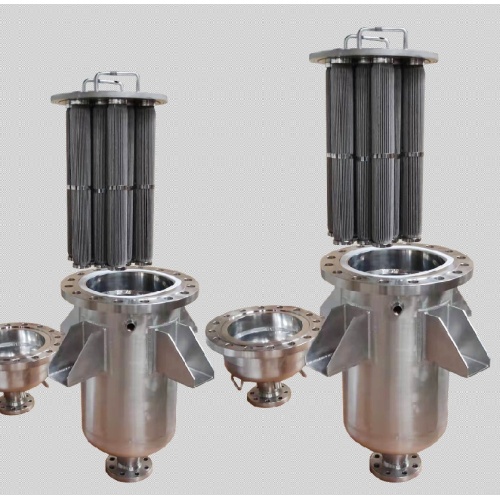

• Stainless Steel Folding Filter Element: suitable for repeated cleaning and high-temperature and high-pressure filtration
• Stainless steel folding filter element: suitable for automatic cleaning filtration
• High flow filter element: suitable for high flow and high pollution filtration

ZSJ-J01 Welding Single Core Precision Filter

The Zhuo Nuo ZSJ-J01 series precision filter can be equipped with a microporous filter element (length can be selected from 5 to 40 inches) in different specifications, and can achieve different flow rates according to different materials, pore sizes, and lengths. The design of sanitary grade structures can be applied to special industries such as pharmaceuticals, food and beverage.

The connection form of the filter element of the filter is generally 226 or threaded.

The pressure gauge can be equipped with either a regular pressure gauge or a diaphragm pressure gauge. Each unit undergoes strict pressure testing and inspection before leaving the factory.

Technical Parameters

Materials of Each Component

• Shell materials: carbon steel, stainless steel 304, 316L
• Filter material: solution spray, fiberglass, PP, PTFE
• Stainless steel housing gasket: nitrile rubber, optional fluororubber, PTFE

Performance Parameters

• Filtering accuracy: 0.003 microns ~ 100 microns
• Temperature resistance: 80 ℃
• Pressure resistance: room temperature limit 1.6Mpa
• Flow rate: maximum 5T/H - depends on accuracy and filter cartridge

Surface Treatment

• Polishing, electrolytic polishing, food grade polishing, sandblasting, painting
