ZSG Series Internal Scraper Cleaning Filter

The ZSG series internal scraper cleaning filter, a type of Scraper self-cleaning filter, is primarily suited for fluids with high viscosity and heavy particles in the filter belt.

XF-S2 Series Self-Cleaning Filter

The XF-S2 series self-cleaning filter, classified as a Stainless Steel Scraper Self-cleaning Filter, is specifically designed for the papermaking industry to address issues in coating and pulp filtration. It can eliminate paper breaks and streaks, effectively reduce the environmental impact of emissions, and ensure maximum working time and product quality. This Outer Scraper Self-Cleaning Filter operates fully automatically, making it an ideal choice for continuous filtration processes without manual intervention.

Application and Features

This series of self-cleaning filters is suitable for pipeline selections ranging from DN25 to DN900. Its Fully Automatic Cleaning Filter feature ensures uninterrupted filtration during cleaning cycles. The filter offers continuous fluid flow, easy maintenance, and reliable operation, making it widely applicable across all industries. The automatic cleaning process is triggered by a pressure differential switch or pressure sensor that constantly monitors the pressure difference between the inlet and outlet of the filter, typically set at a preset value of 0.5 bar (7 psi). The Scraper self-cleaning filter's operation principle is simple: a scraper, either inside or outside the filtering element, continuously removes solid material deposition from the screen’s surface, ensuring the filter remains effective over time.

Operational Principle

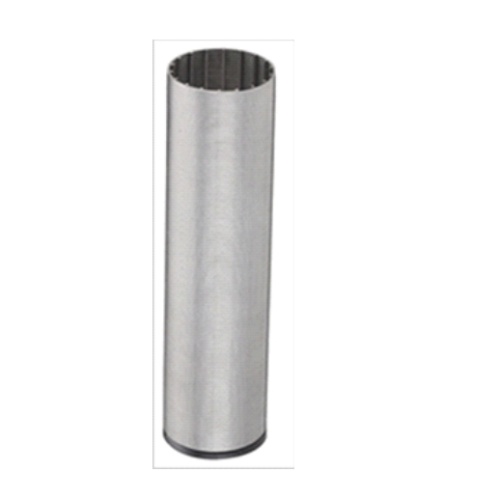

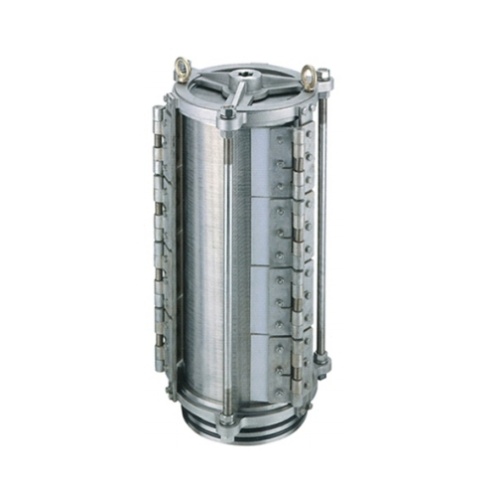

The working principle involves liquid flowing in from the filter's inlet, moving from top to bottom through the surface of the Filter Element to the outlet. When a certain amount of impurities accumulates on the filter element, the scraper of the motor-driven assembly rotates tightly against the filter element's surface to scrape off the impurities. These impurities accumulate in the collection chamber along with the downward liquid. Once a certain amount of impurities has accumulated, the automatic drain valve opens the collection chamber to discharge the liquid containing high-concentration impurities. The residual liquid can be recovered or discharged. Note: An inner scraping type refers to the scraper being inside the filter element, whereas an outer scraping type refers to the scraper being outside the filter element.

Core Components

• Electric drive motor
• Differential pressure switch or high viscosity specialized diaphragm pressure sensor
• Electric sewage ball valve
• Programmable logic controller, convenient for users to adjust parameters under different operating conditions
• Customizable remote control and monitoring according to user requirements
• High-quality wear-resistant scraper blades, resistant to various chemical reagents, with a long service life and reduced maintenance costs

Cleaning Parameters

• Discharge outlet size: DN25, DN50, DN80
• Cleaning time: 30-60 seconds per cycle
• Water consumption per cleaning: ≤ 5%

Comprehensive Parameters

• Operating flow rate: 50-350 m³/H; Customizable minimum working pressure beyond this range: 0.2 MPa
• Maximum working pressure: 1.0 MPa
• Filter area: 3000-20000 cm²
• Filtered fluid viscosity: 3000-100000 centipoise, inlet and outlet diameter: DN50~DN200
• Maximum working temperature: 230°C; Customizable above this temperature
• Control power supply: 24V, 10-24V DC can be selected as needed
• Motor power: 0.37~0.75 kW, 50 Hz, rated operating voltage: 220V/380V
• Current: 1.5-2.0 A

Applicable Filter Media

• Low viscosity
• Wax kerosene
• Monomer
• Polymer water treatment with vitamin citric acid
• Fermentation broth, chitosan, cosmetic, penicillin pills
• Protein shampoo
• Silicone resin solution
• Soap
• Sorbitol
• Steroid
• Sterols
• Grain syrup wet end additive adhesive
• Chemical agents
• Pigment
• Coating
• Rubber
• Ethanol
• Chocolate candy
• Dairy edible oil
• Fruit juice
• Processing liquid coolant
• Catalyst diesel
• Resin
• Agar (gel)
