Y-Shaped Filters

Y-shaped filters, such as the Cast STEEL Y Strainer and Cast Iron Flanged Y Strainer, are an indispensable device in pipeline systems for conveying media. These filters are engineered to withstand the pressures and demands of industrial applications, providing reliable filtration to protect equipment and ensure smooth operation.

The Cast Iron Y strainer is a popular choice for its durability and cost-effectiveness, making it suitable for a wide range of applications where media needs to be free from impurities. Similarly, the Cast pipiline Y-strainer Flange connection is designed for installations where a flanged connection is preferred, offering a secure and leak-proof seal to the pipeline system.

These Y-shaped filters are usually installed at the inlet of pressure reducing valves, relief valves, constant water level valves, or other equipment to remove impurities from the medium and protect the normal use of valves and equipment. The Cast STEEL Y Strainer, in particular, is chosen for its strength and resistance to corrosion in more demanding environments.

Whether you opt for a Cast Iron Flanged Y Strainer for its ease of installation or a Cast Iron Y strainer for its straightforward design, these filters play a crucial role in maintaining the integrity of the pipeline system. They help to prevent damage to sensitive equipment and ensure that the media being conveyed remains clean and free from contaminants that could disrupt processes or reduce efficiency.

In summary, Y-shaped filters like the Cast STEEL Y Strainer, Cast Iron Flanged Y Strainer, Cast Iron Y strainer, and Cast pipiline Y-strainer Flange connection are essential components in any pipeline system that requires the removal of impurities from the conveyed media. Their presence helps to safeguard the performance and longevity of the entire system.

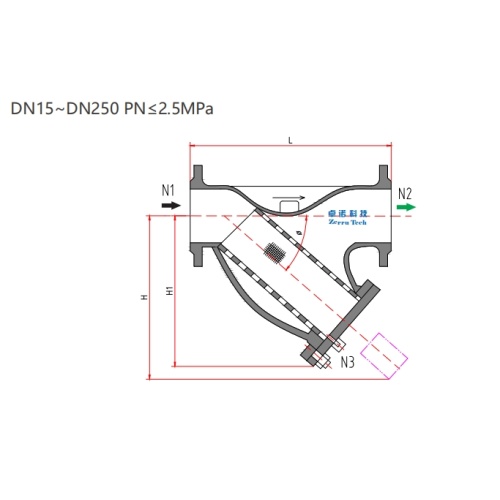

ZRY-Ⅰ Same Diameter Cast Y-Filter (Flange Connection)

Product Code: cast pipiline Y-strainer (Flange)
Diameter Range: DN15~DN250
Pressure Rating: PN≤2.5MPa

Note: ① The included angle with * is 55° (the rest are 45°); ② The effective filtering area is calculated based on a 30 mesh Filter Screen; ③ The reference weight is the weight of PN2.5 grade.
