Carbon steel ZD-S filtration system

ZD-S Filtration System

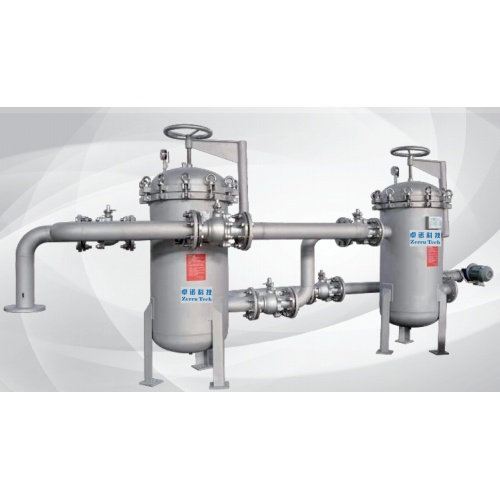

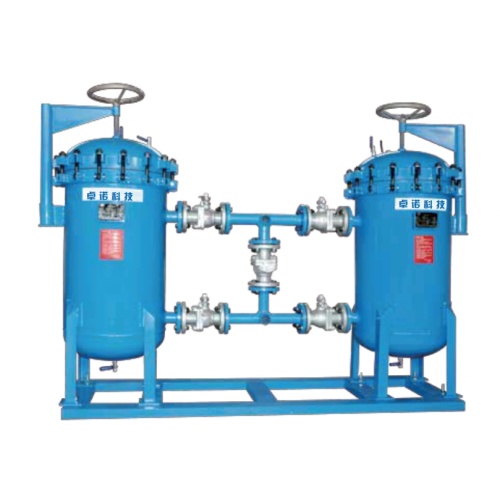

The ZD-S filtration system, a carbon steel filtration solution, is designed with multiple series filters for continuous and non-stop filtration conditions. This Industrial Water Filtration System and Industrial Fluid Filtration System consists of two or more single-Bag Filter units. The Filter system can use clamp-type single-bag filters for coarse filtration, side-entry single-bag filters for filtration under various working conditions, or use top-entry filters for strict filtering of operating conditions. The wastewater filtration system is also adaptable to this setup.

The ZD-S filtration system saves space and is easy to expand, with strong flexibility, which is crucial for industrial applications. Each filter unit exists independently, and each Filter Bag needs to be replaced. Work is also independent, so it can achieve non-stop operation, ensuring continuous filtration even when maintenance is required.

Original Zhuo Nuo spare parts and consumables can ensure safety and reliability during operation. Not only can it be selected according to different applications, but it can also be used to improve the process, such as hollow balls. This feature can make it easier to replace filter bags, which is particularly beneficial for the Industrial Water Filtration System and Wastewater Filtration System. In handling iron particles, LOFNETCI magnetic rod components can extend the lifespan of filter bags, which is a significant advantage for the Carbon Steel ZD-S Filtration System and Industrial Fluid Filtration System.

Characteristics

• 2 to 16 units are designed in parallel, and replacing filter bags does not affect the filtration system without stopping, achieving online filtration.
• Variety of materials available including carbon steel, stainless steel 304, 316L, 2205, etc.
• Sandblasting or polishing treatment, easy to clean.
• Standard design, universal No.2 bag filter.
• Stainless steel support filter basket.
• Flexible opening method, can use ring bolts for easy opening.
• Instruments can be installed together.

Product Composition

1. Support Net Basket: Durable electropolished 316L filter basket (included in the shell) is a filter bag and component that can withstand pressure differences up to 0.35MPa. It is available in various sizes and is suitable for all types of filter bags and filters. There are also special material mesh baskets such as Hastelloy or PTFE coating available for selection.
2. Magnetic Rod Assembly: During filtration, one or more magnetic rod support frames are placed inside the filter bag to effectively suck out particles mixed with iron, avoiding accumulation in the filter material, thus extending the service life of the filter bag and achieving the recycling of rare metals.
3. Filter Bag Support Frame: For filtering safety design, a support frame should be used to prevent the upward and downward movement of the filter bag due to unstable pressure, and to ensure that the filter bag adheres to the net basket, avoiding the problem of filter material folding and fully utilizing its filtering area.
4. Hollow Ball: When filtering, the hollow ball floats inside the filter bag, reducing the amount of liquid left in the bag or reducing product loss, making it easier to replace the filter bag and eliminating the need for expensive compressed air drainage systems. Made of 316L, with a maximum pressure difference of 16 bar, it is available in two sizes: #01 and #02.
5. Sealing Gasket: Zhuo Nuo metal filters are equipped with O-ring seals as standard, and other materials such as EPDM fluororubber (FPM), FPM wrapped with PTFE or silicone rubber are available for selection. They have different chemical and heat resistance properties and are suitable for various applications.
6. Stainless Steel Filter Screen: A series of 316L filters can convert bag filtration into mesh filtration, available in four sizes: #01, #02, #03, and #04, with specifications of 25, 50, 100, 150, 200, 400, and 800 micron levels.
7. Other: Spare parts such as regular pressure gauges, filter bag pressure rings, exhaust valves, bolts, butterfly valves, or ball valves are available for selection, and can be used together with various filters.
